DL7APV Pulsare detection



B2000+40

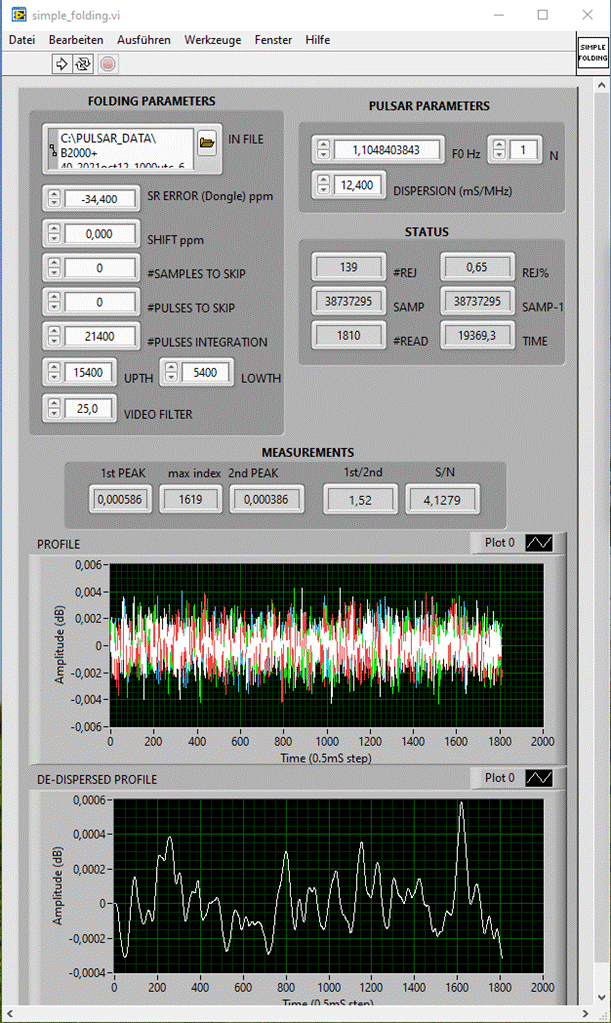

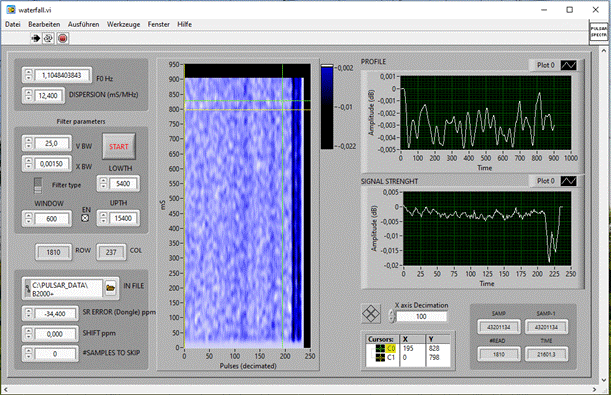

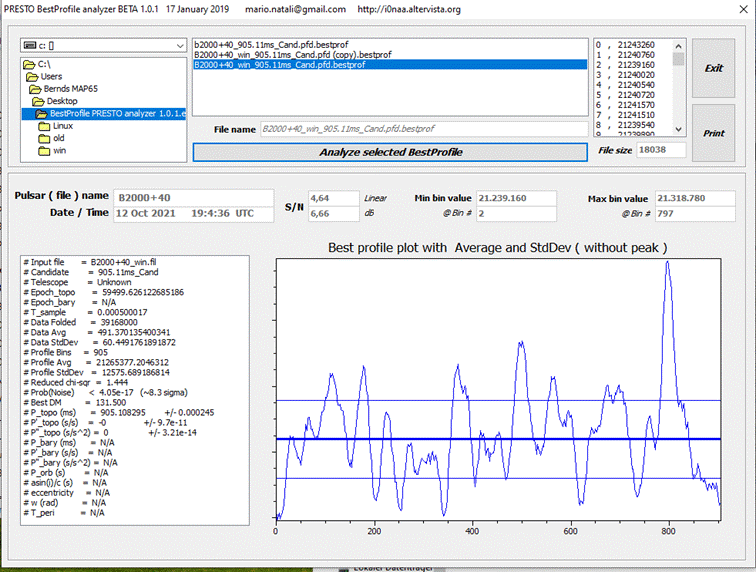

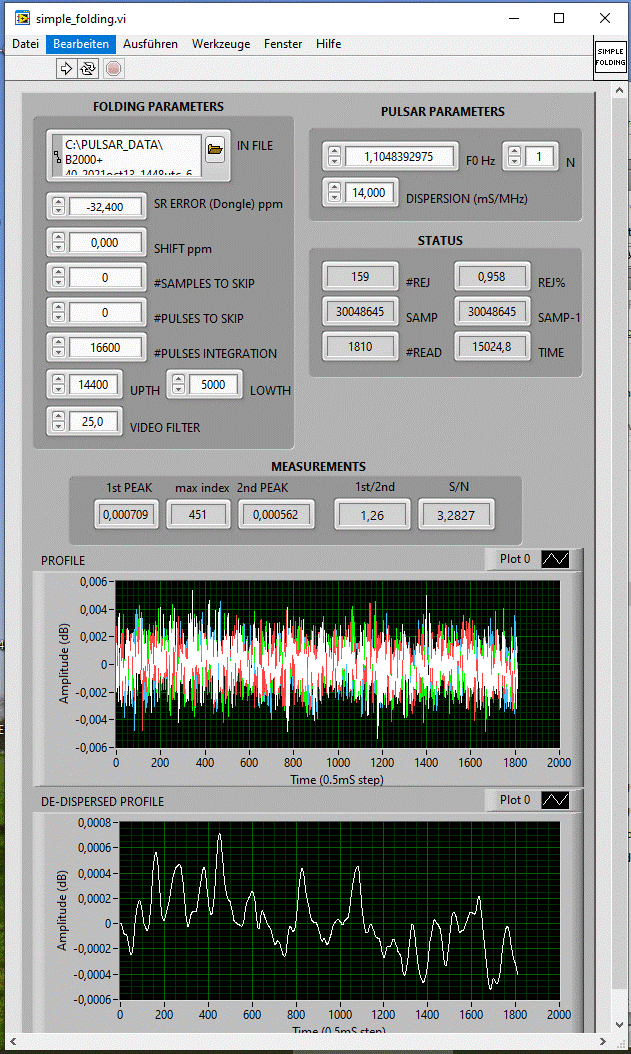

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

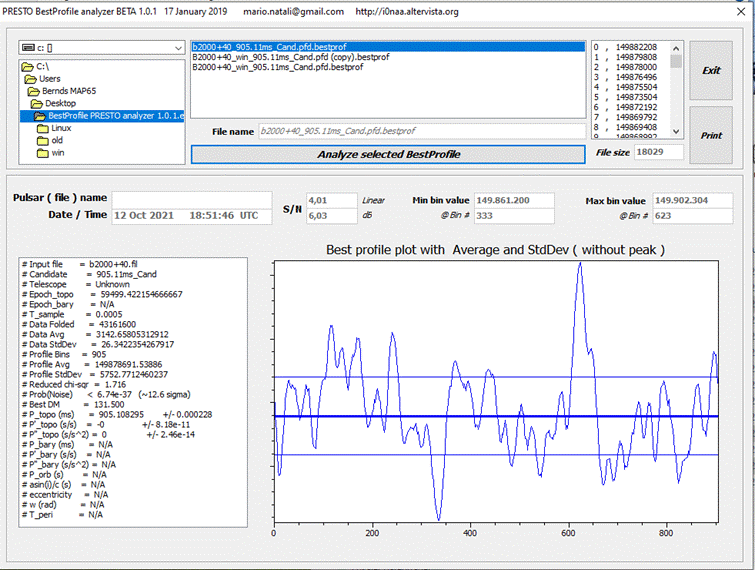

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

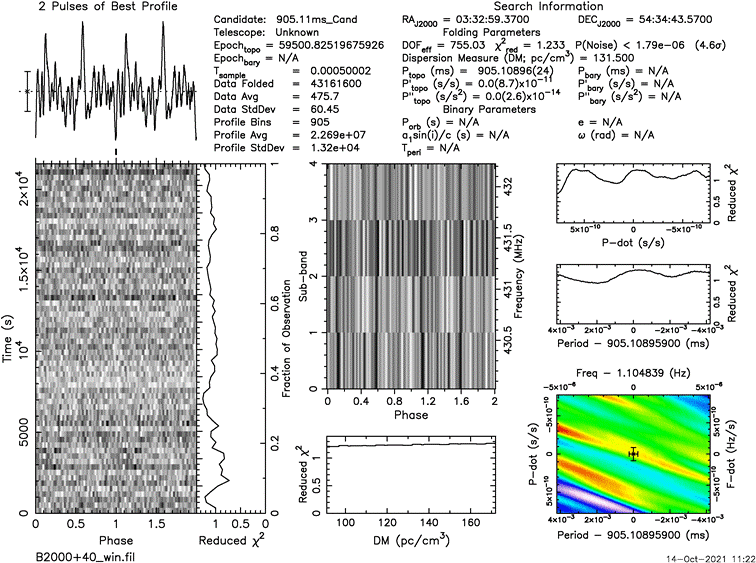

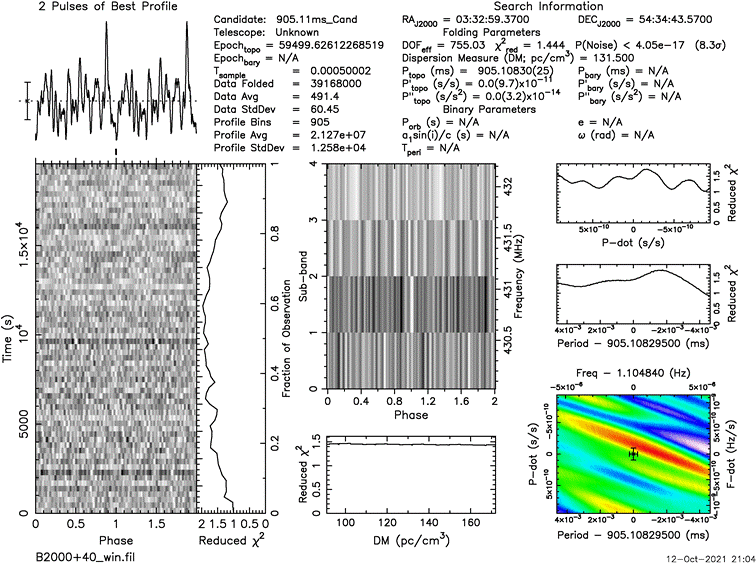

After conversion: B2000+40_win.fil

Recorded File

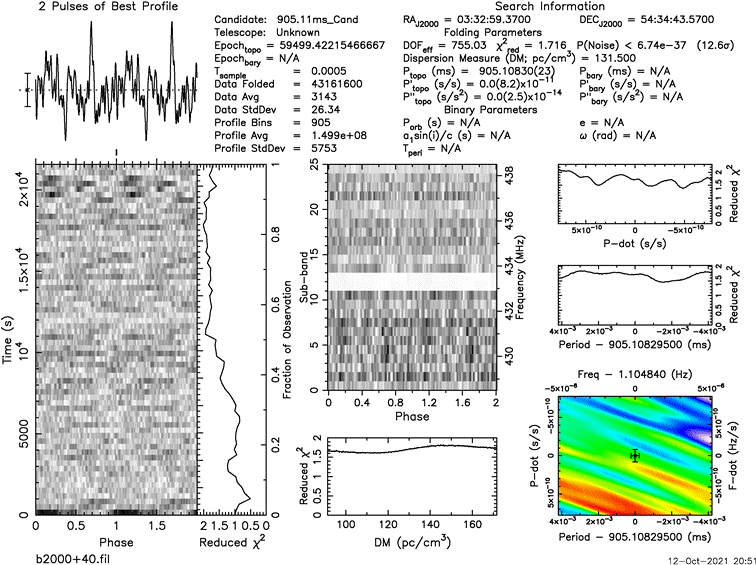

After conversion: b2000+40.fil

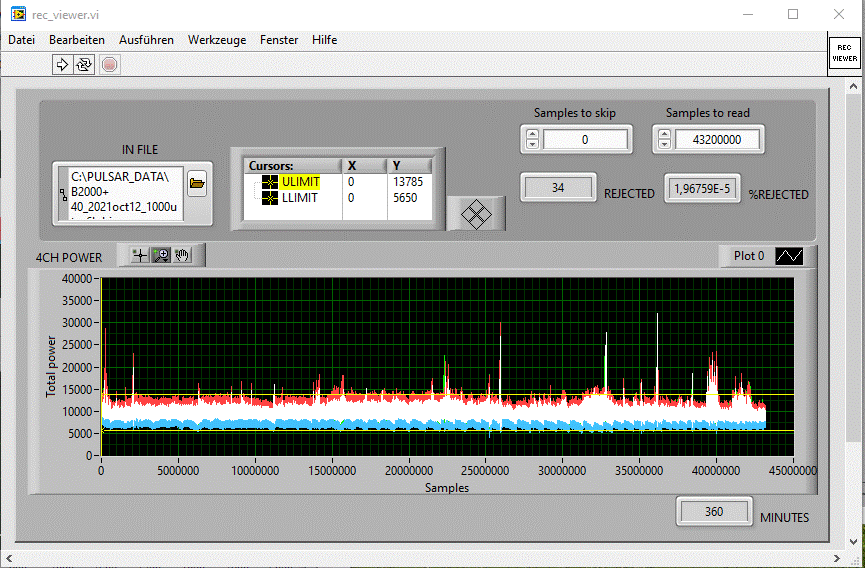

Record date: 2021 oct 12 Start 10:00 UTC 6h

Local antenna direction from Az/EL 44/18 to 113/68

And 2nd attempt

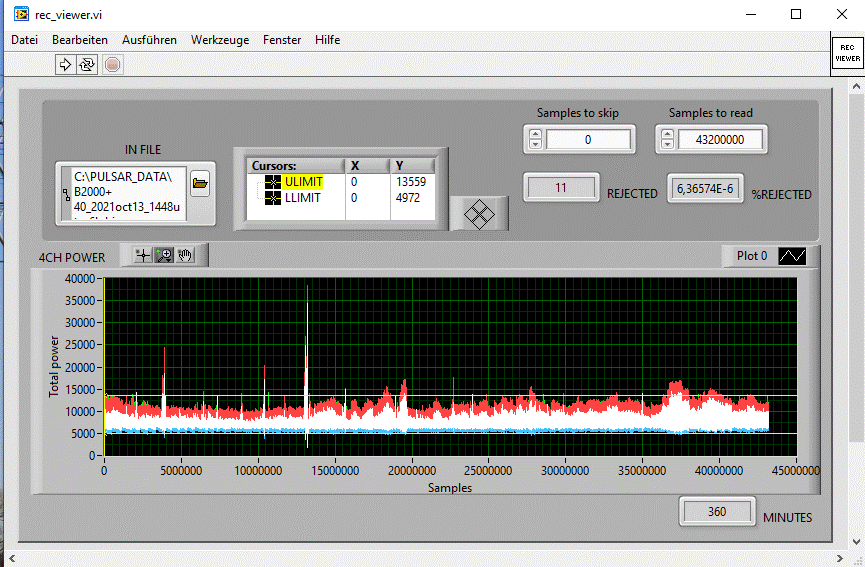

2021_oct 13 Start 14:48UTC 6h





RTL settings:

Frequenz : 431.200 MHz, Gain 33dB

-s 2048000

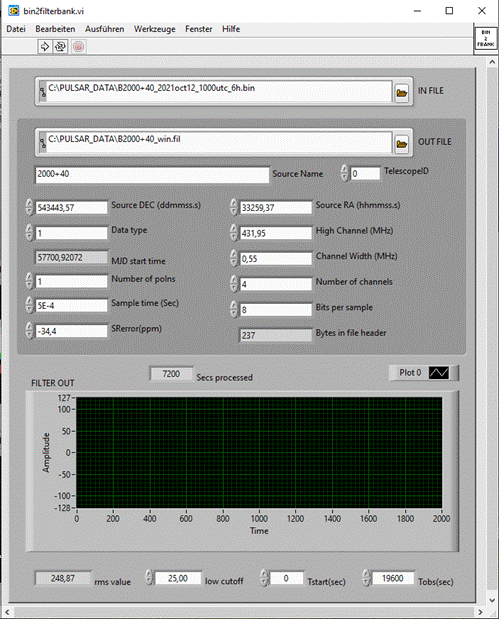

Bin2fil data:





2nd attempt:





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



Airspy settings:



rec_gui:

ACQ time (s)

21600

Sample rate

10MSPS (airspy)

SR time series

2KSPS

Num chan

25

Frequency (MHz)

433.5

RF gain (dB)

26

IF Gain (dB)

6

BB gain

0

DIG gain

2





Bin2fil settings:



Conv start

0

Length

21600

Ampli

2

Filt H

21

Filt L

0.06

Filter typ

Bessel

Source name



DEC



RA



Center frequency (MHz)

433.5

SR

10MSPS (airspy)

SR error (ppm)

0

SR time series

2KSPS

Channels

25

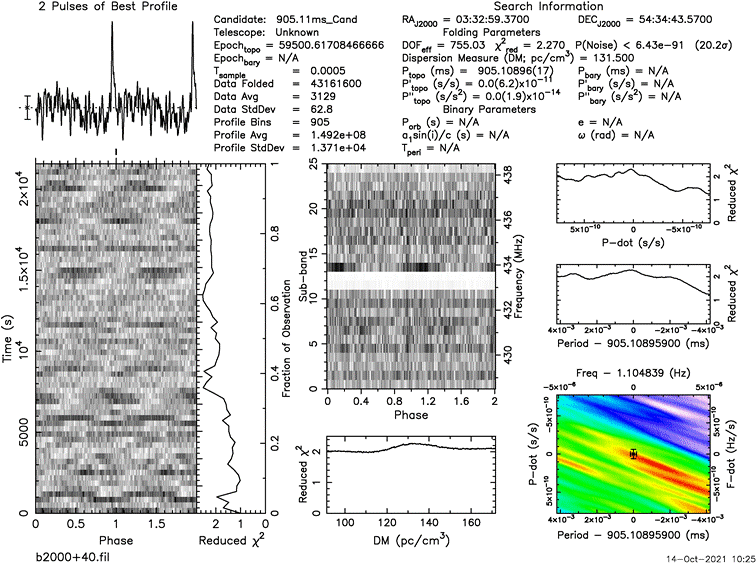

Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



The typical electrical fence from neighbor

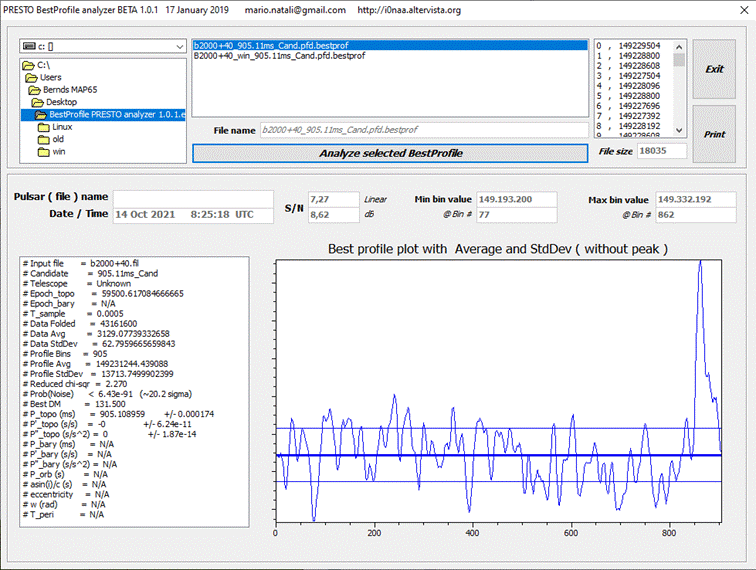

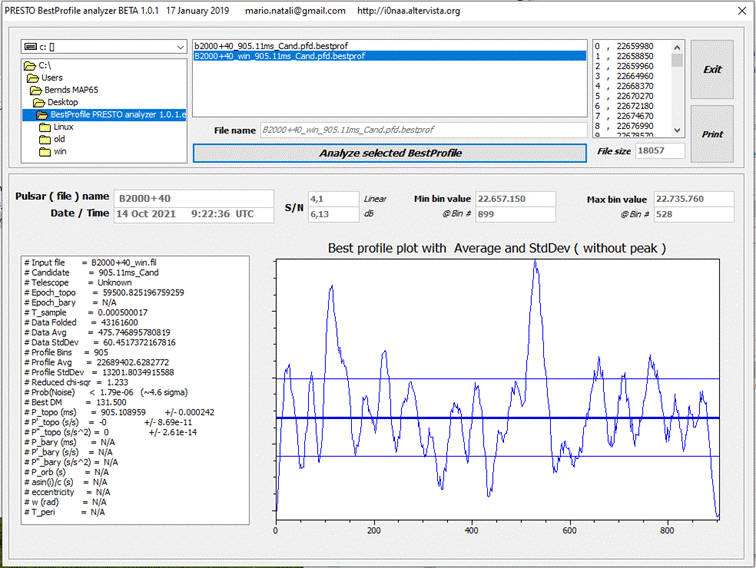

2nd attempt



























2nd attempt







2nd attempt











2nd attempt











2nd attempt

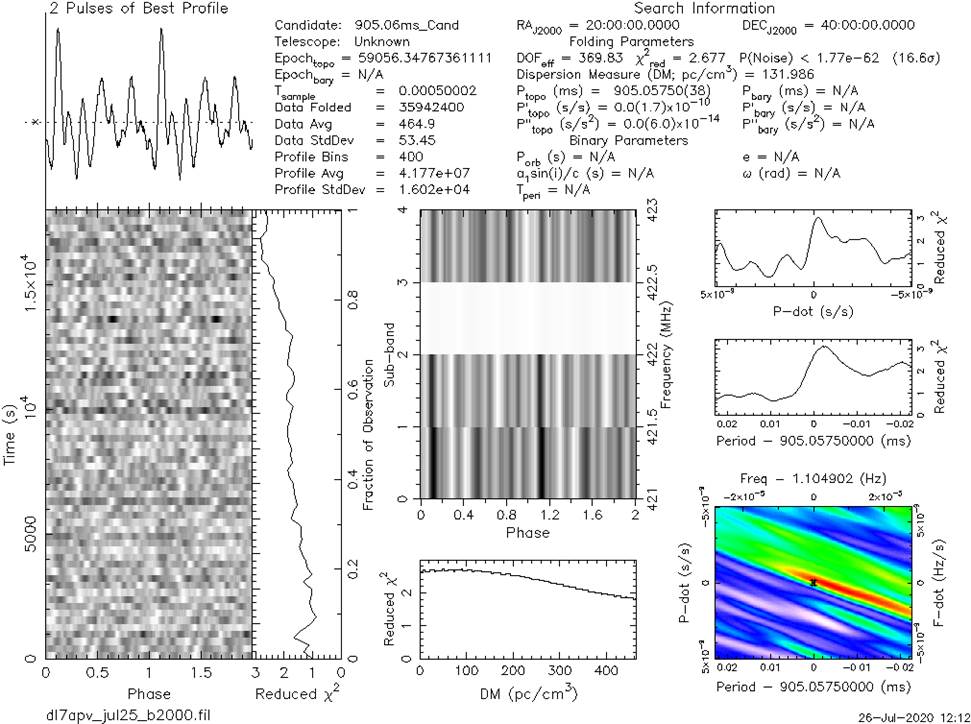

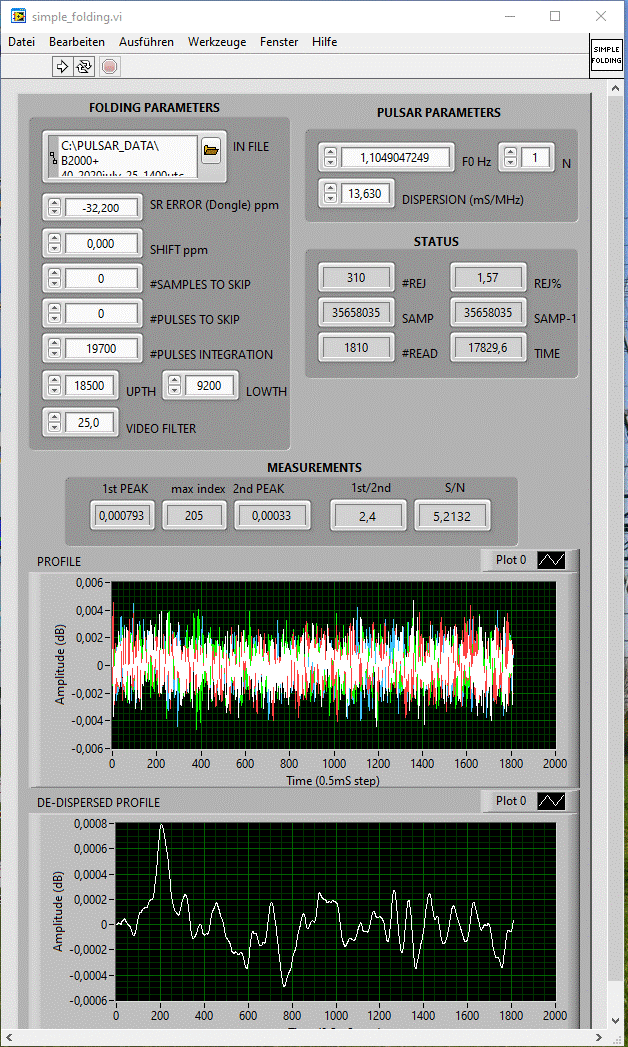

Older recordings with 2MHz

and 5h observation time













back





Last update okt 2021
