DL7APV Pulsare detection

B1929+10

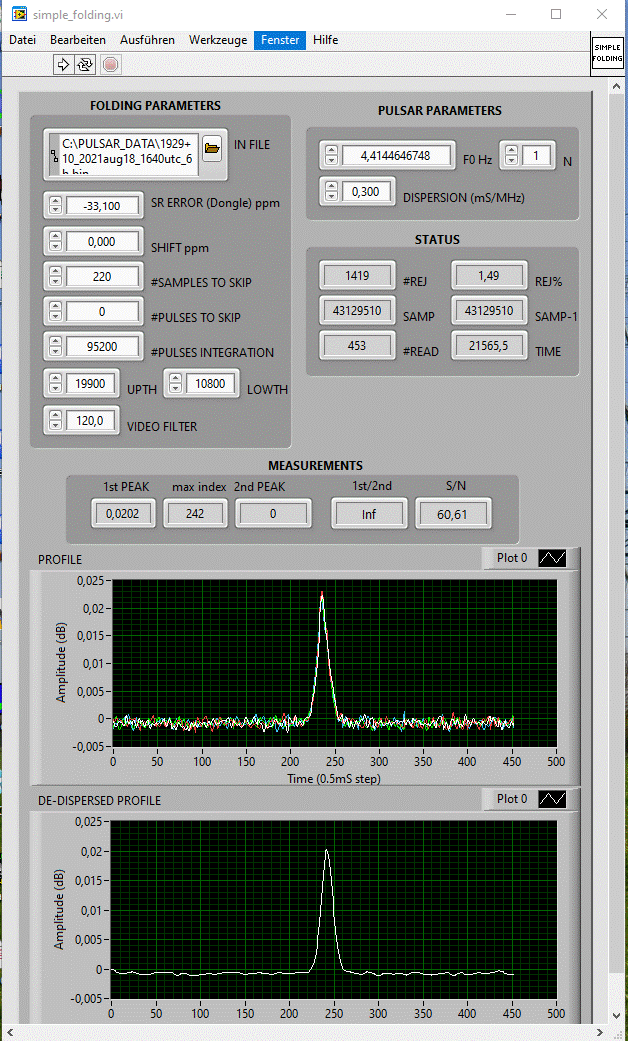

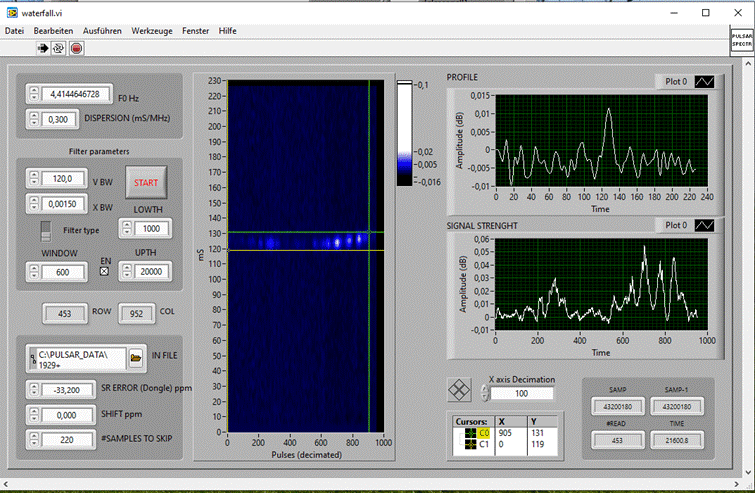

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

After conversion: B1929+10_win.fil

Recorded File

After conversion: b1929+10.fil

Record date: 2021 aug 18 Start 16:40 UTC 6h

Local antenna direction from Az/EL 107°/26° to 221°/42°

RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000

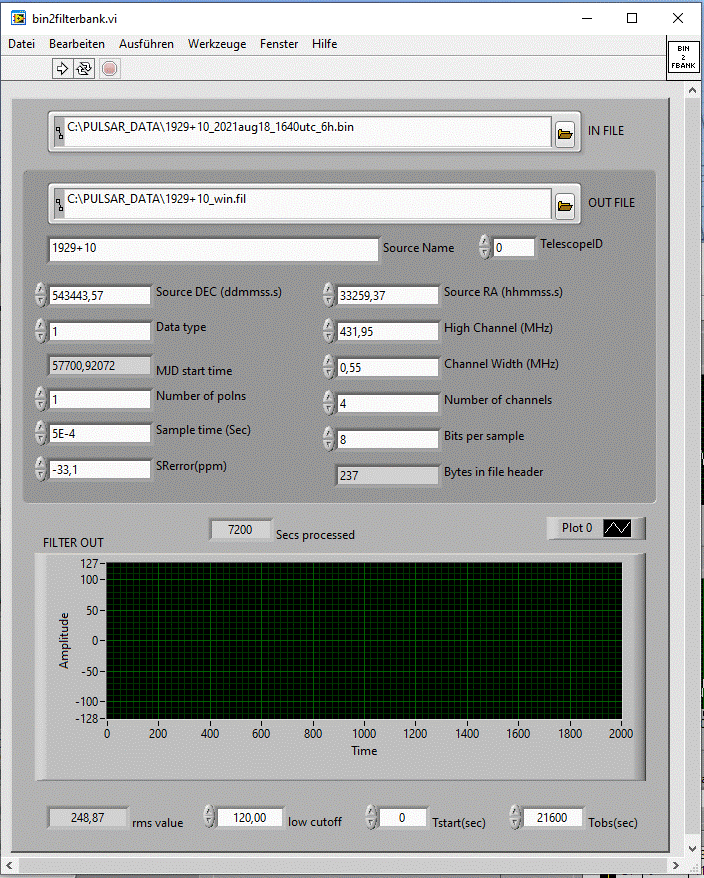

Bin2fil data:

Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

Airspy settings:

rec_gui:

ACQ time (s)	21600
Sample rate	10MSPS (airspy)
SR time series	2KSPS
Num chan	25
Frequency (MHz)	433.5
RF gain (dB)	30
IF Gain (dB)	7
BB gain	0
DIG gain	2
Bin2fil settings:
Conv start	0
Length	21600
Ampli	2
Filt H	118
Filt L	0.29
Filter typ	Bessel
Source name
DEC
RA
Center frequency (MHz)	433.5
SR	10MSPS (airspy)
SR error (ppm)	0
SR time series	2KSPS
Channels	25

Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

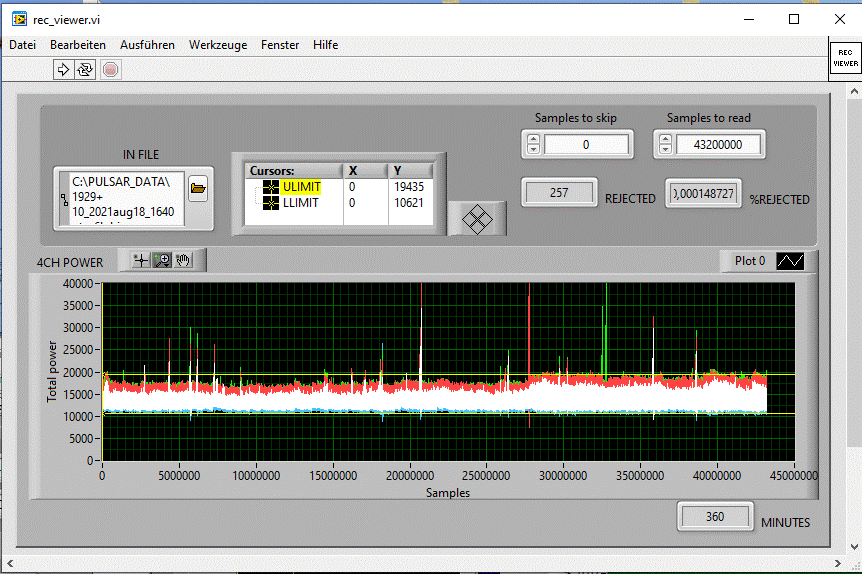

Quiet, with typical electrical fence from neighbor

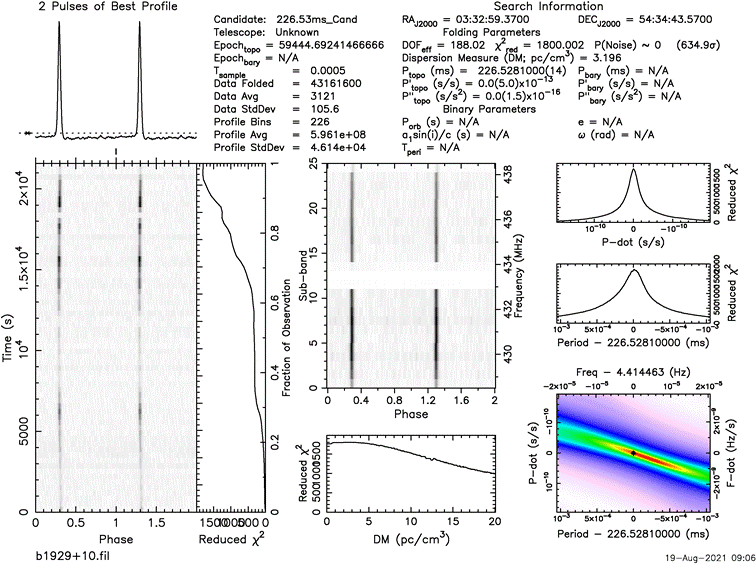

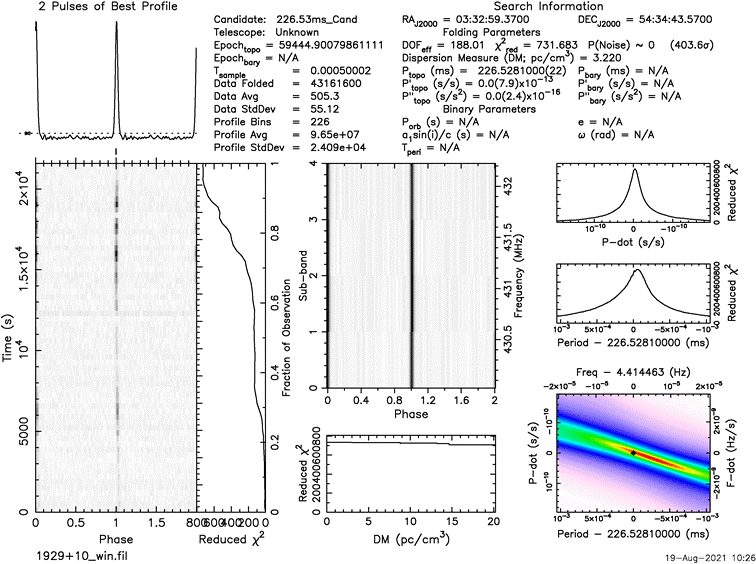

As always the DM curve looks better as in 2MHz

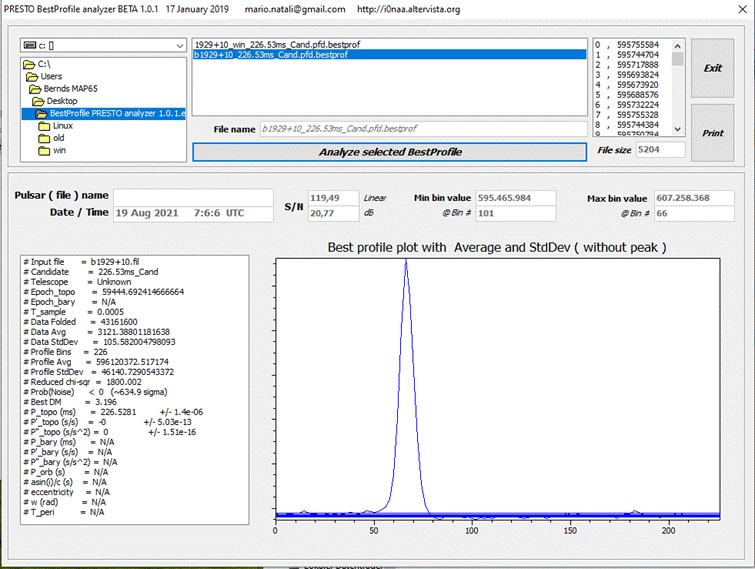

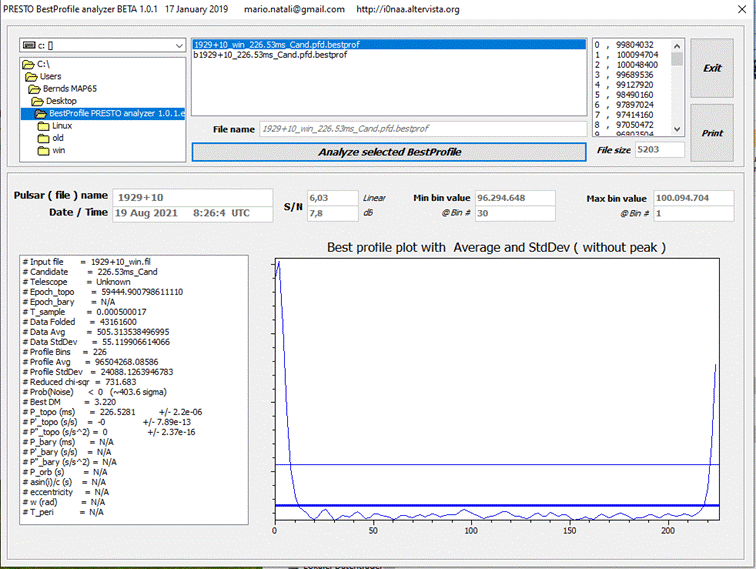

In folding analysis S/N was 60 so why here only 6 in presto ?? maybe while its on the edge ??

S/N is much better as with 2MHz as awaited

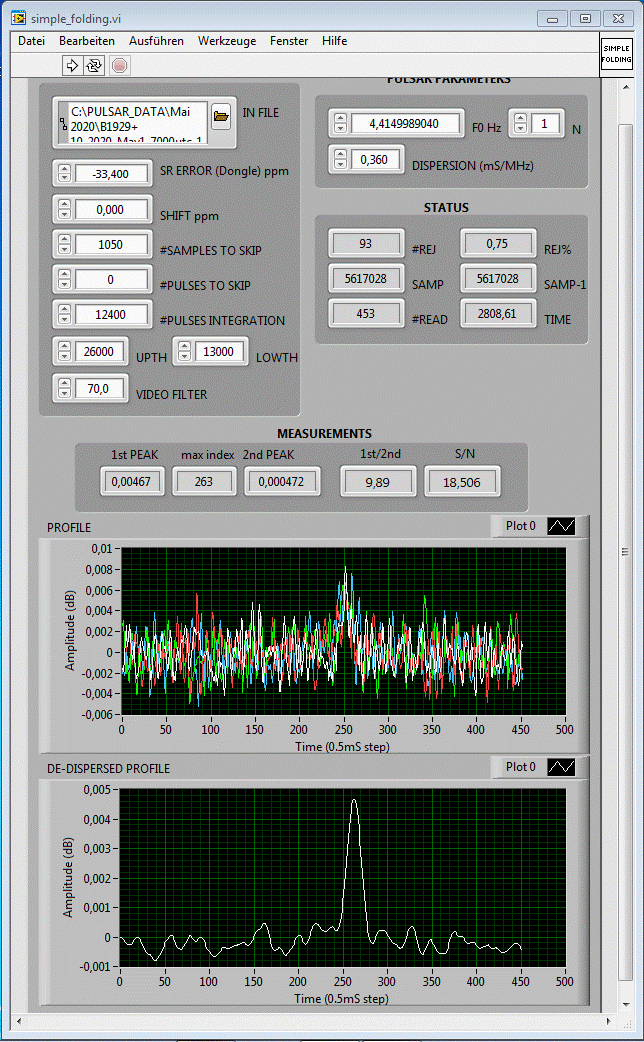

Older recordings with 2MHz and 1hour
