DL7APV Pulsare detection



B1911-04

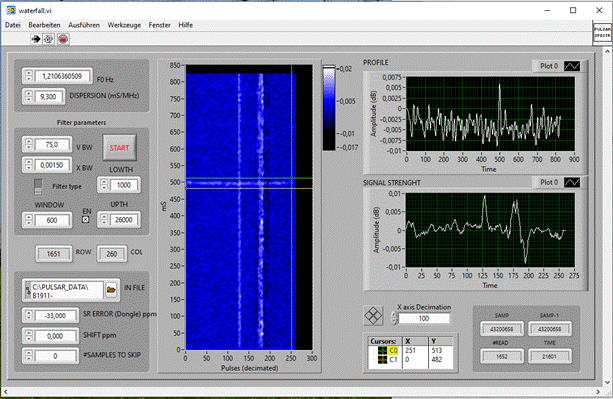

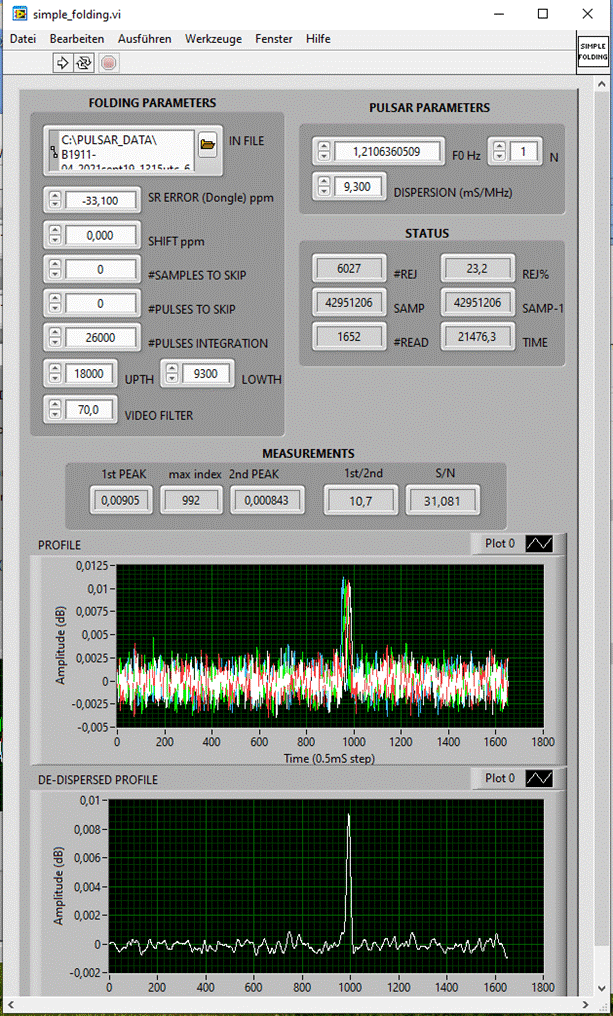

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

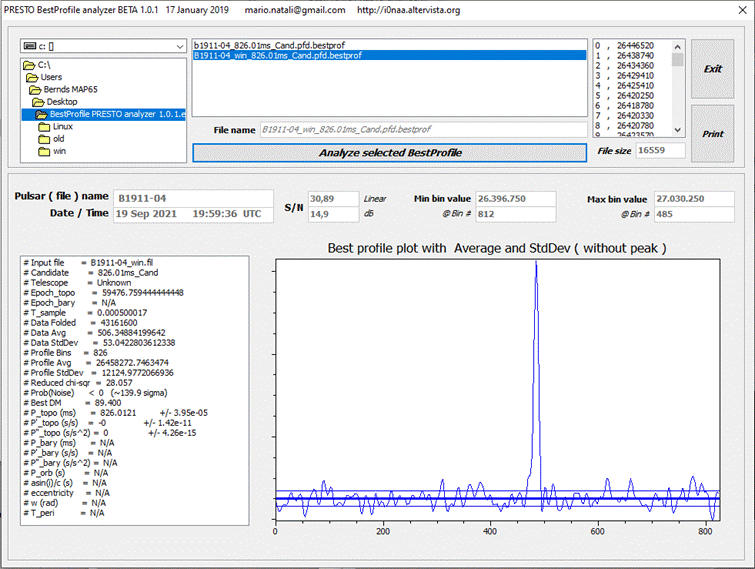

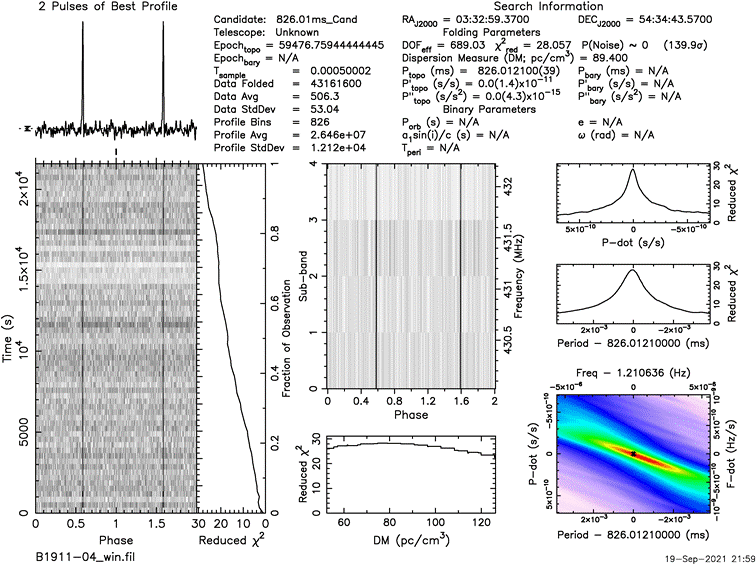

After conversion: B1911-04_win.fil

Recorded File

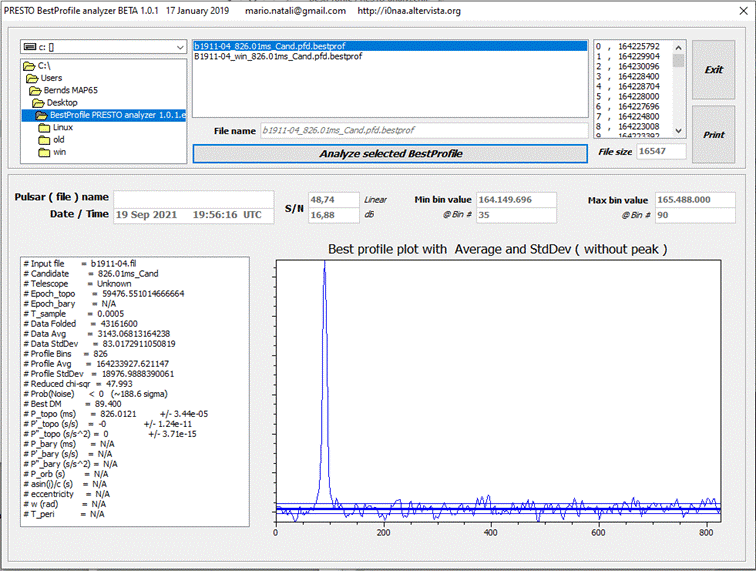

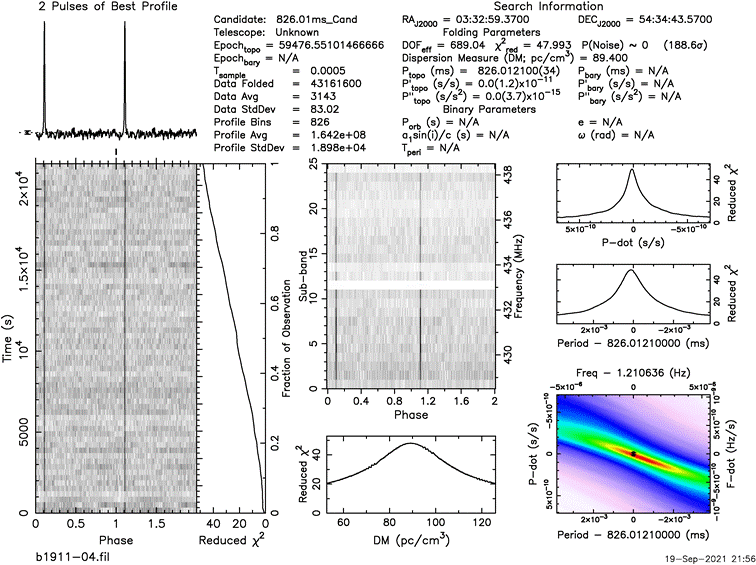

After conversion: b1911-04.fil



Record date: 2021 sept 19 Start 13:15 UTC 6h

Local antenna direction from Az/EL 102/3 to 199/31



RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000

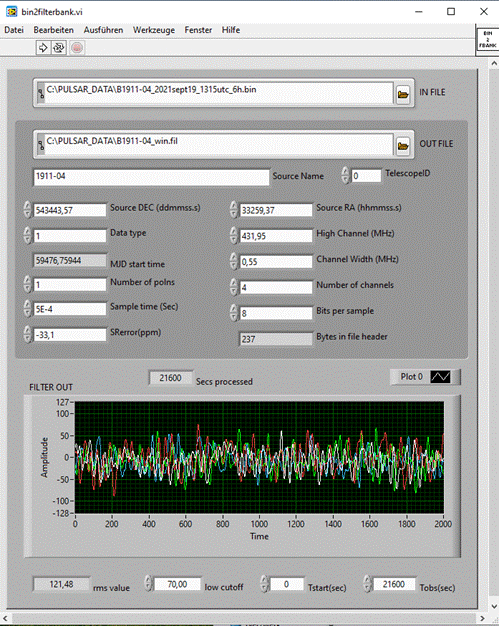

Bin2fil data:







Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



Airspy settings:



rec_gui:

ACQ time (s)

21600

Sample rate

10MSPS (airspy)

SR time series

2KSPS

Num chan

25

Frequency (MHz)

433.5

RF gain (dB)

30

IF Gain (dB)

9

BB gain

0

DIG gain

2





Bin2fil settings:



Conv start

0

Length

21600

Ampli

2

Filt H

75

Filt L

0.055

Filter typ

Bessel

Source name



DEC



RA



Center frequency (MHz)

433.5

SR

10MSPS (airspy)

SR error (ppm)

0

SR time series

2KSPS

Channels

25





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

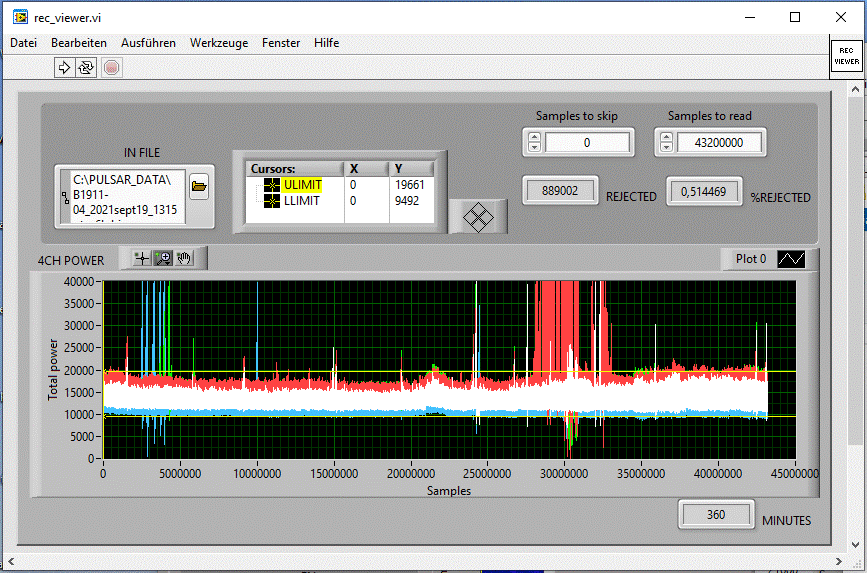

The typical electrical fence from neighbor with some extra qrm

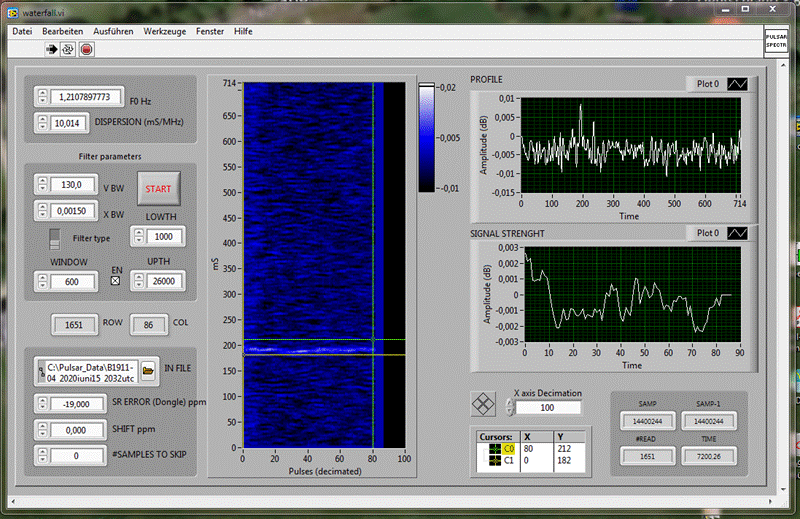

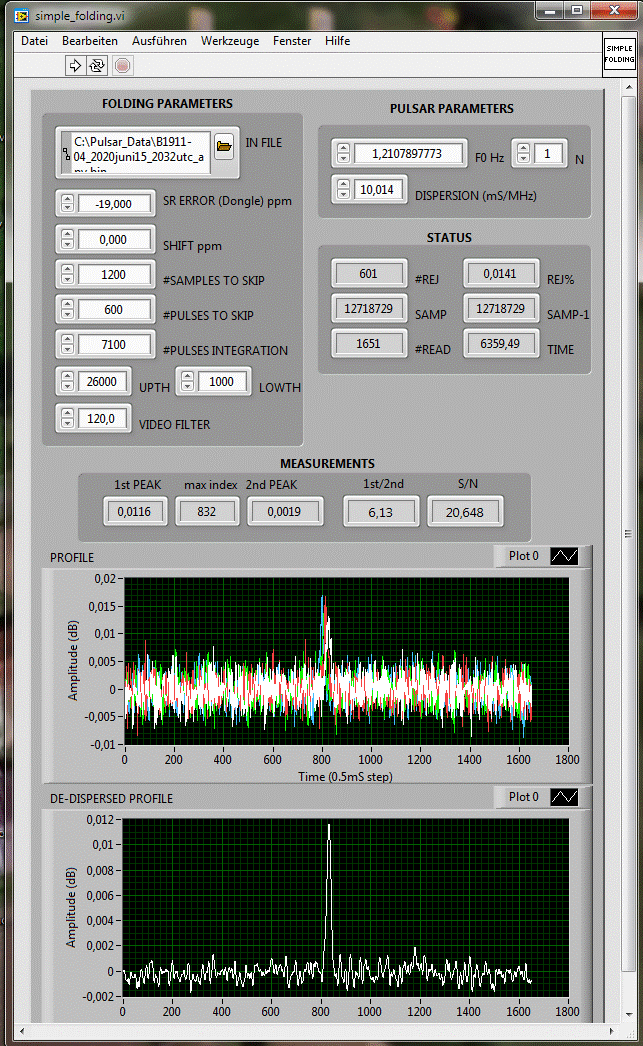

Older recordings with 2MHz

and 2h observation time















back
