DL7APV Pulsare detection



B1604-00

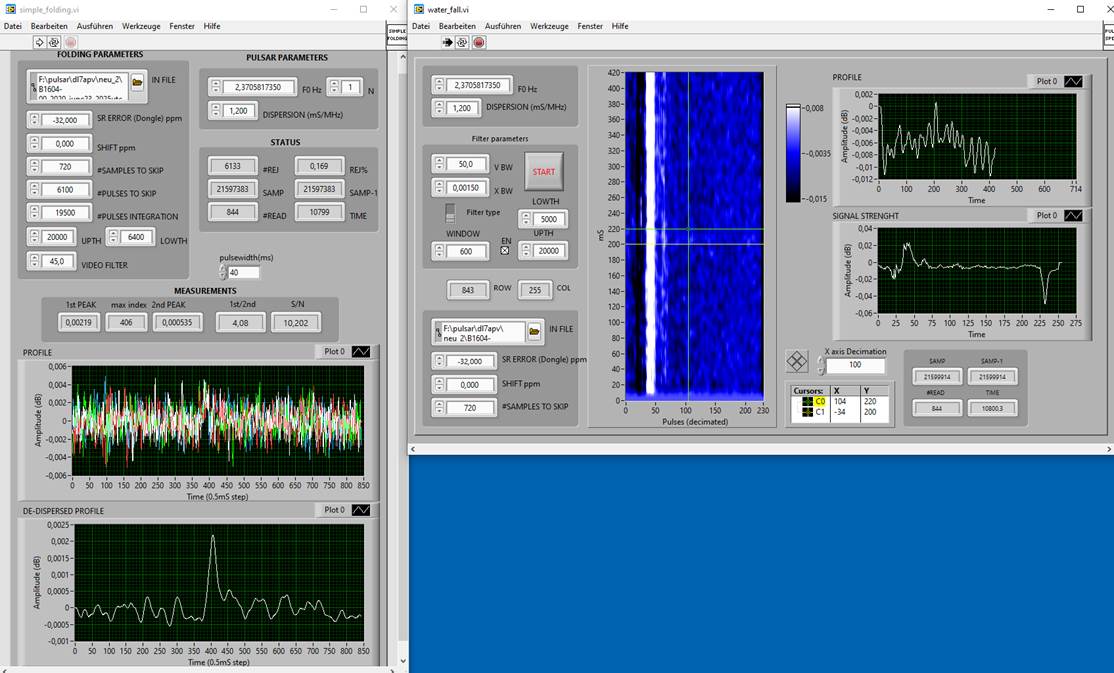

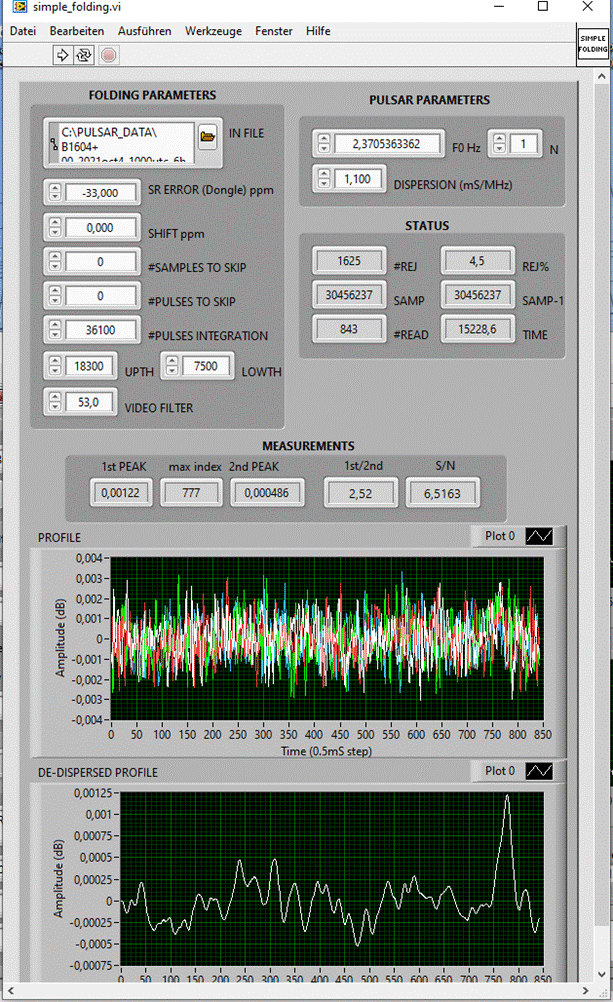

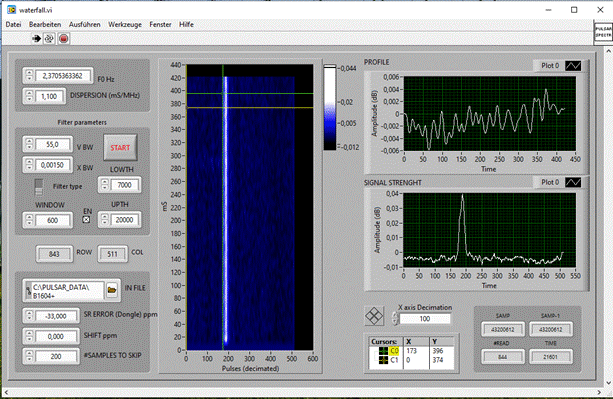

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

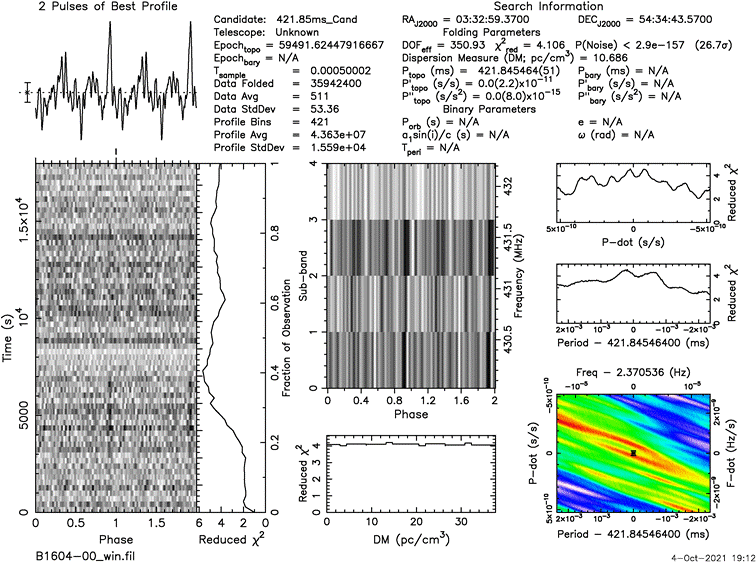

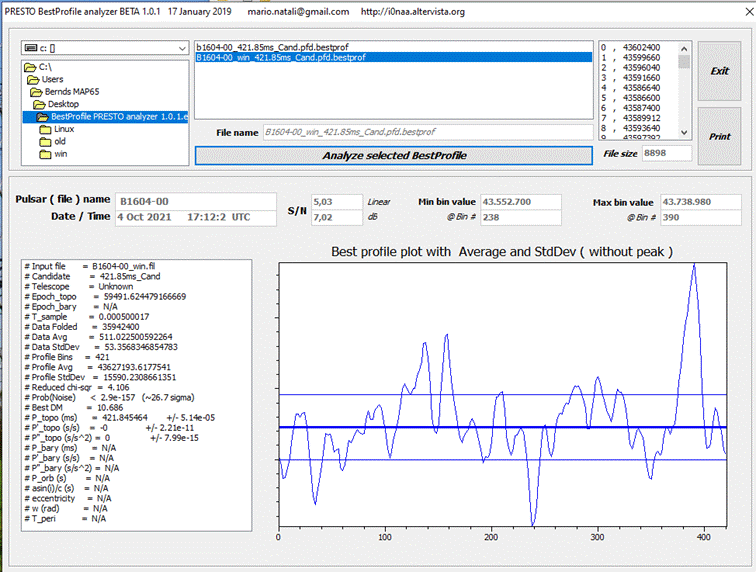

After conversion: B1604-00_win.fil

Recorded File

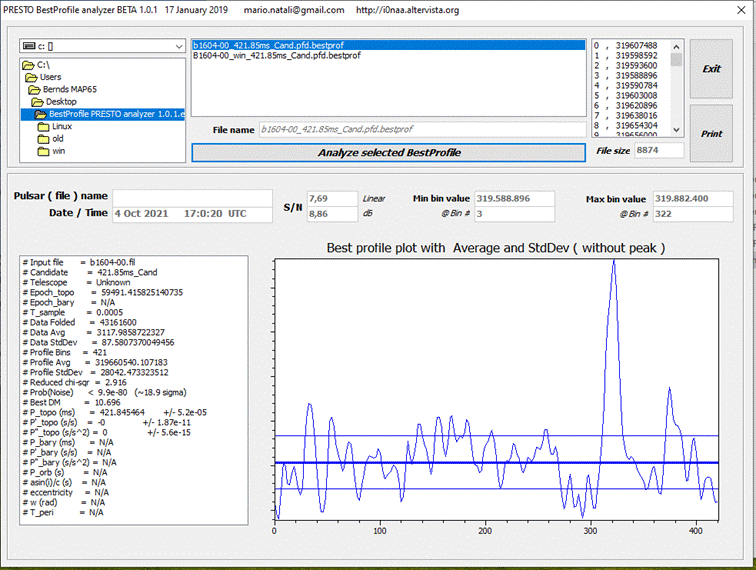

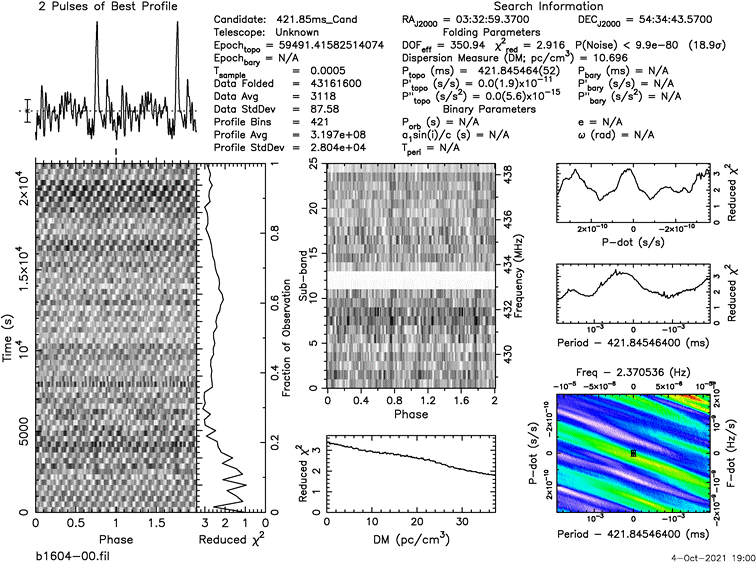

After conversion: b1604-00.fil



Record date: 2021 oct 4 Start 10:00 UTC 6h

Local antenna direction from Az/EL 110/14 to 215/31



RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000



Bin2fil data:







Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



Airspy settings:



rec_gui:

ACQ time (s)

21600

Sample rate

10MSPS (airspy)

SR time series

2KSPS

Num chan

25

Frequency (MHz)

433.5

RF gain (dB)

30

IF Gain (dB)

9

BB gain

0

DIG gain

2





Bin2fil settings:



Conv start

0

Length

21600

Ampli

2

Filt H

55

Filt L

0.03

Filter typ

Bessel

Source name



DEC



RA



Center frequency (MHz)

433.5

SR

10MSPS (airspy)

SR error (ppm)

0

SR time series

2KSPS

Channels

25





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

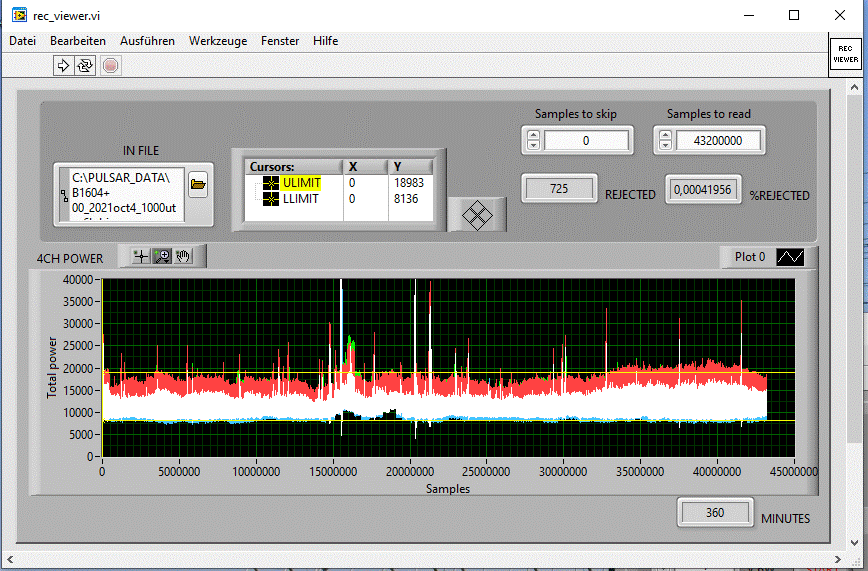

The typical electrical fence from neighbor

























It seems the qrm made it hard at 10MHz BW































Older recordings with 2MHz

and 3h observation time
