DL7APV Pulsare detection



B1508+55



Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

After conversion: B1508+55_win.fil

Recorded File

After conversion: b1508+55.fil



Record date: 2021 aug 23 Start 18:00 UTC 6h

Local antenna direction from Az/EL 291/74 to 325/30



RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000

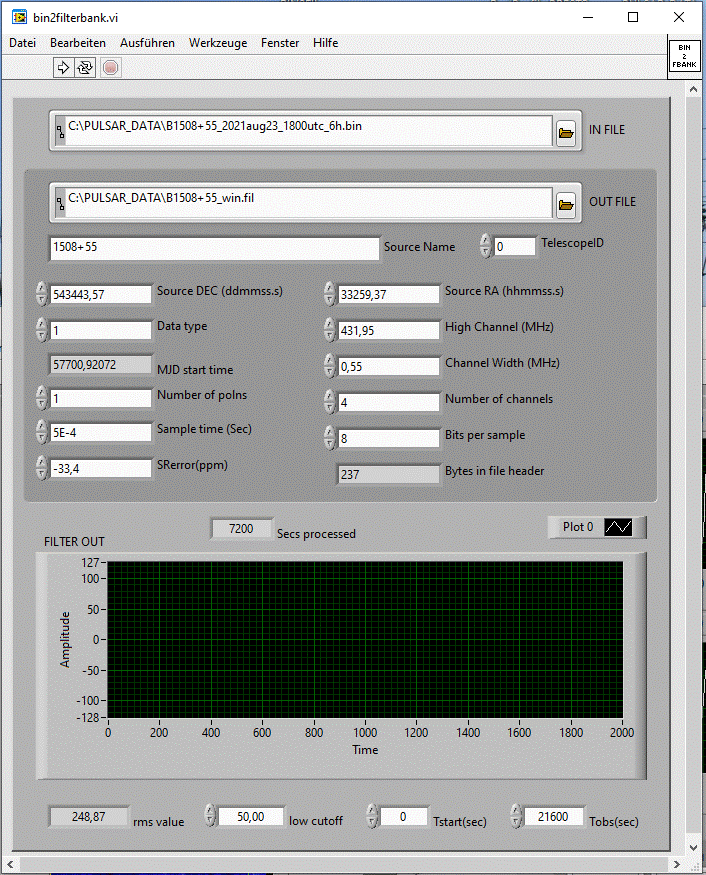

Bin2fil data:





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



Airspy settings:



rec_gui:

ACQ time (s)

21600

Sample rate

10MSPS (airspy)

SR time series

2KSPS

Num chan

25

Frequency (MHz)

433.5

RF gain (dB)

30

IF Gain (dB)

7

BB gain

0

DIG gain

2





Bin2fil settings:



Conv start

0

Length

21600

Ampli

2

Filt H

50

Filt L

0.05

Filter typ

Bessel

Source name



DEC



RA



Center frequency (MHz)

433.5

SR

10MSPS (airspy)

SR error (ppm)

0

SR time series

2KSPS

Channels

25





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

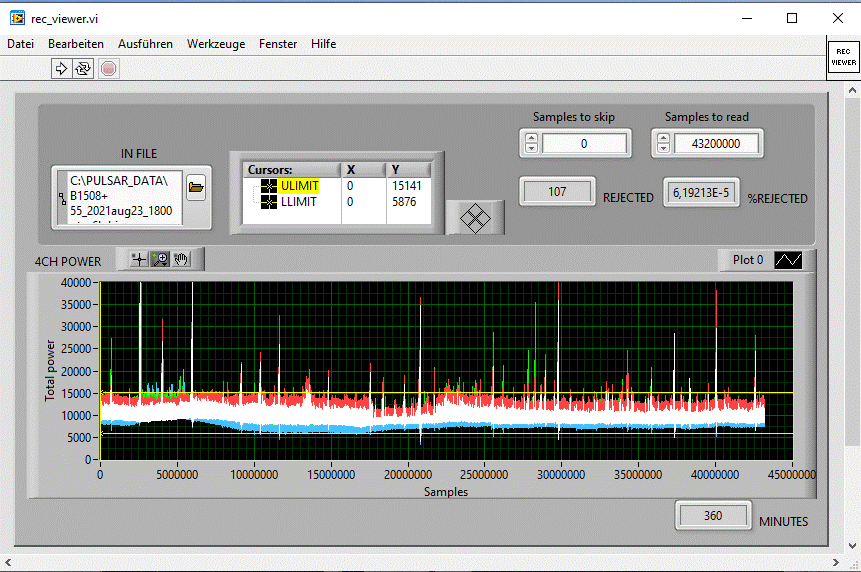

Quiet, with typical electrical fence from neighbor

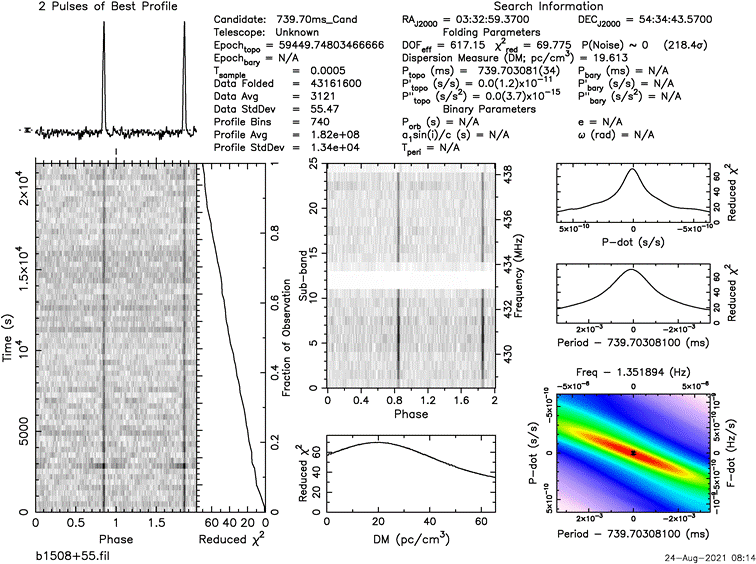

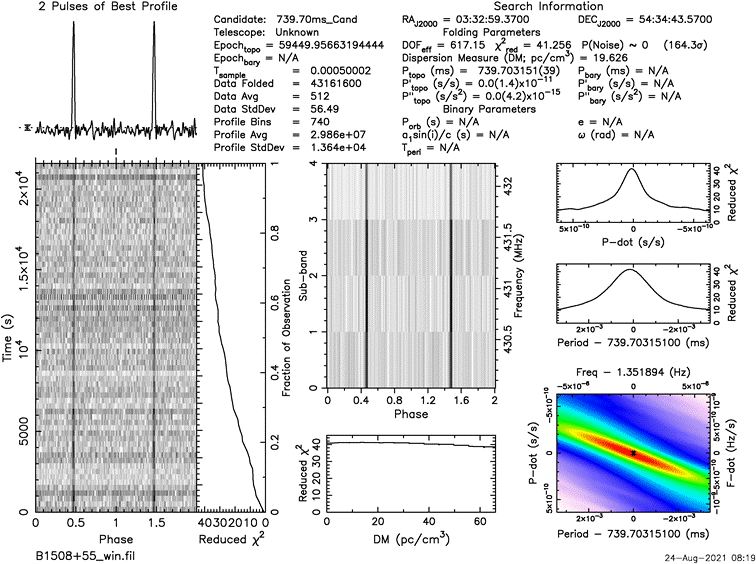

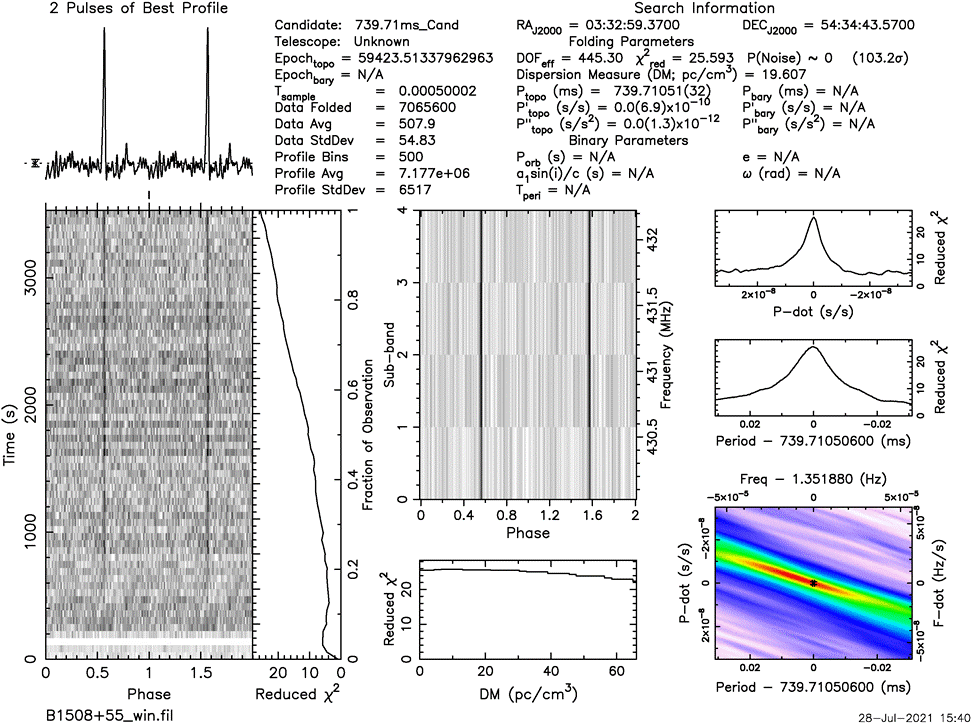

As in most cases the DM curve is much better as with the 2MHz recording

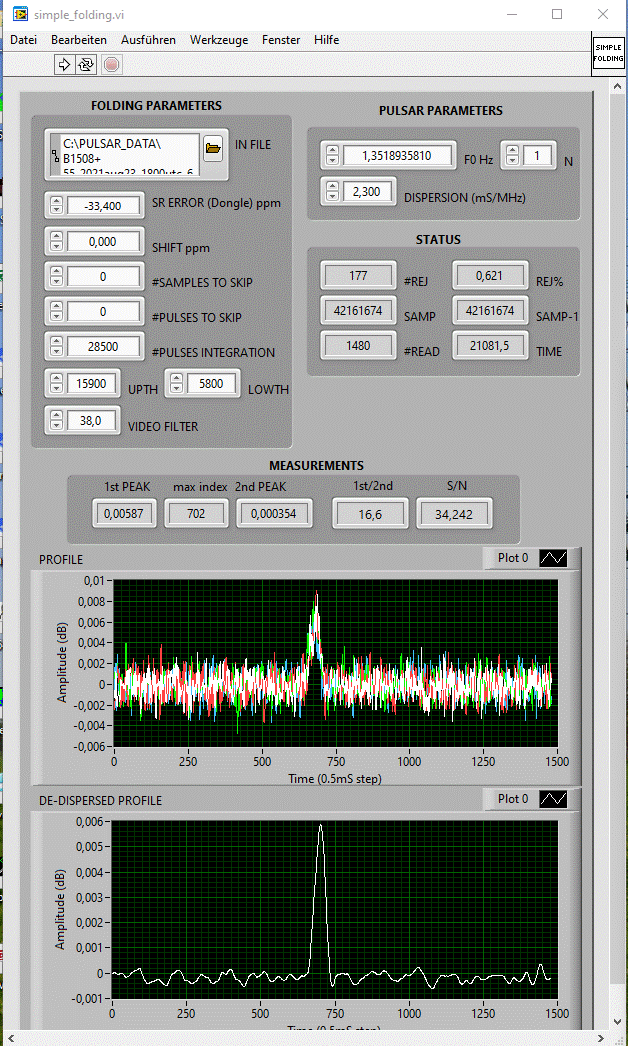

Nearly same S/N as in folding before

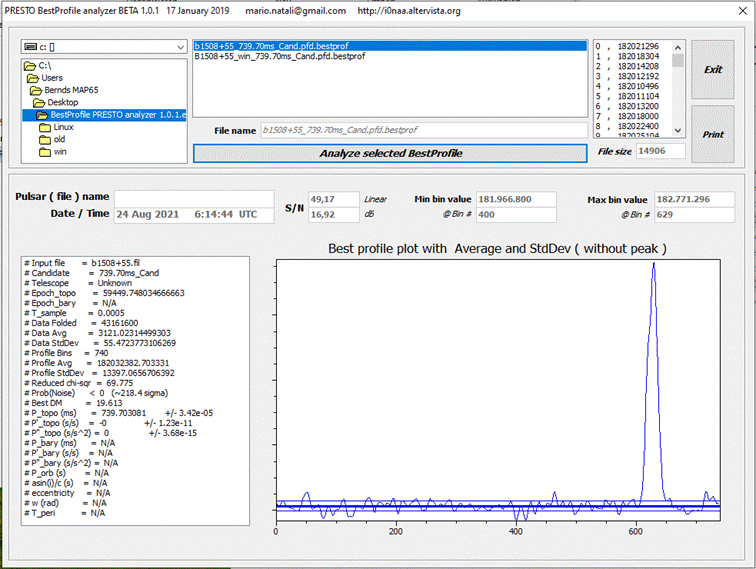

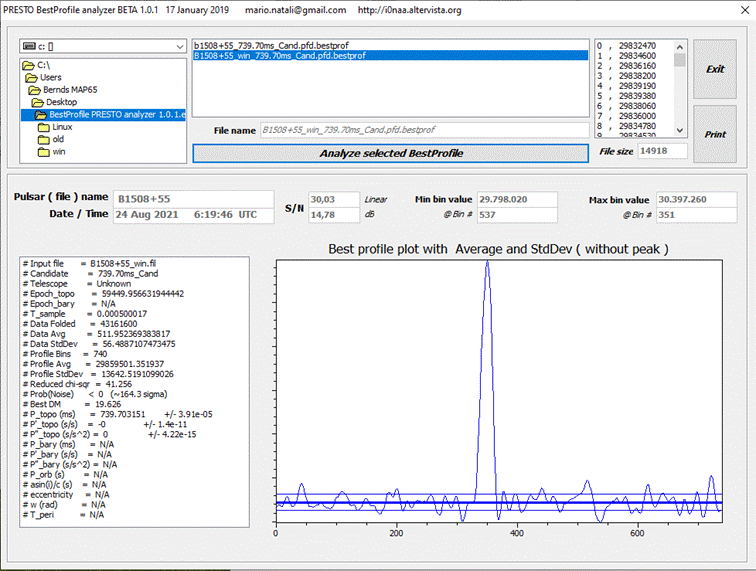

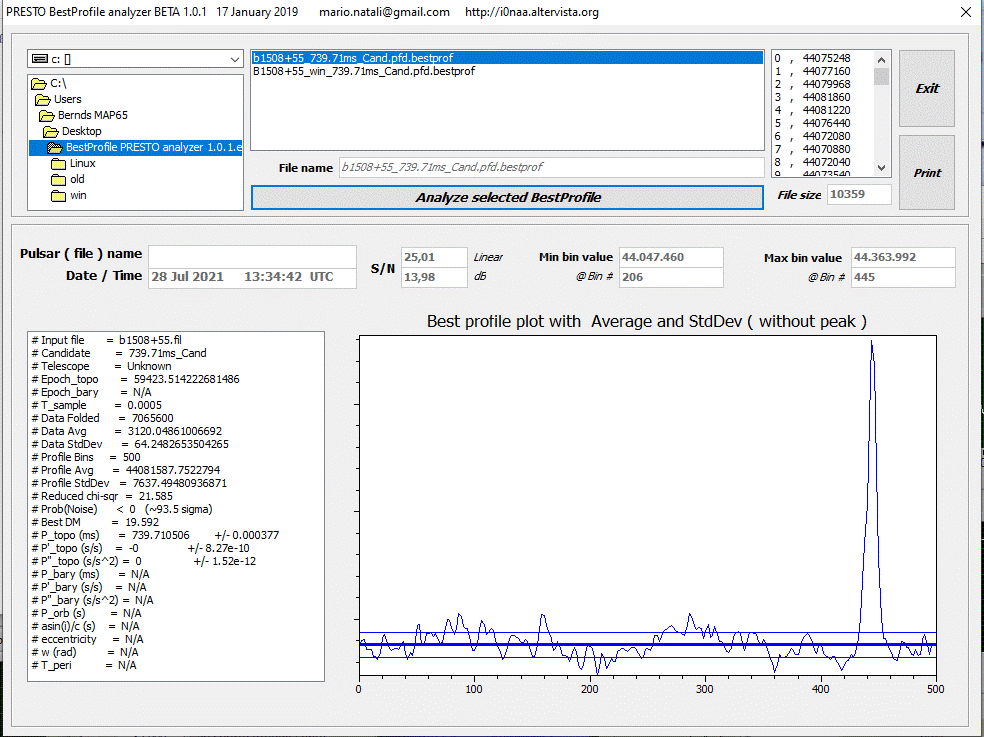

Much better S/N as the 2MHz value

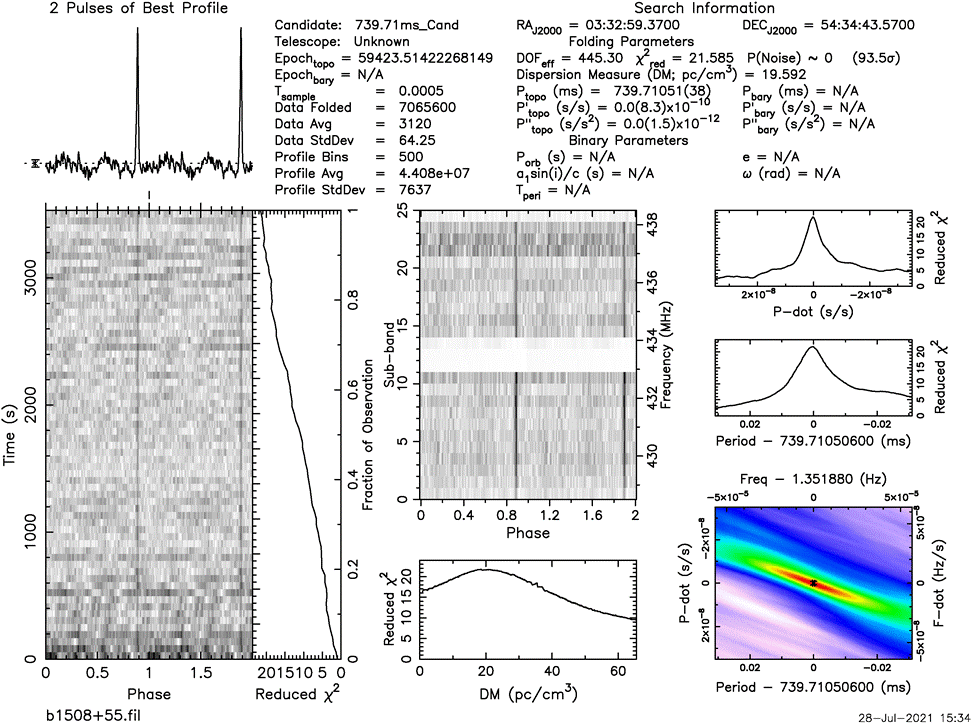

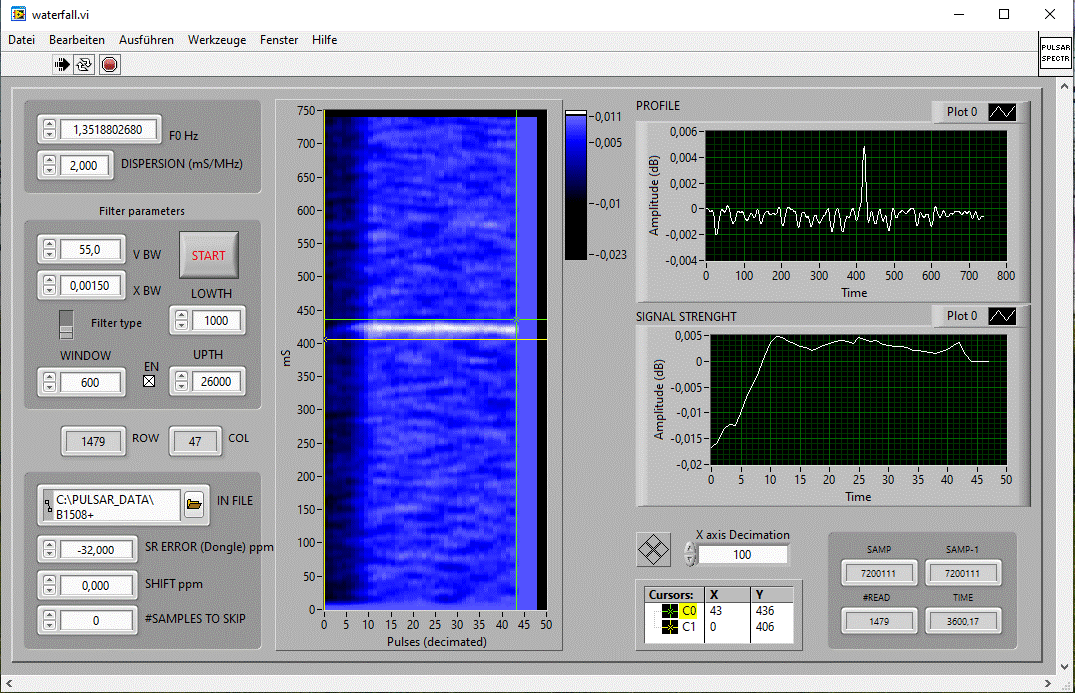

Older recordings with 2MHz

and 1h observation time





Still some drift in beginning due at the RTL/software

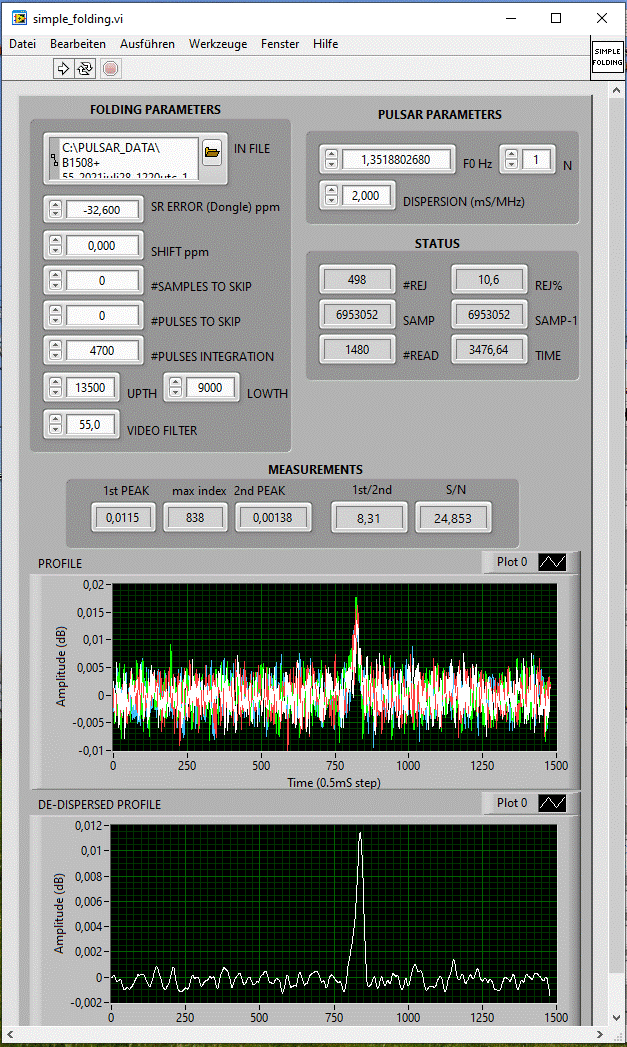

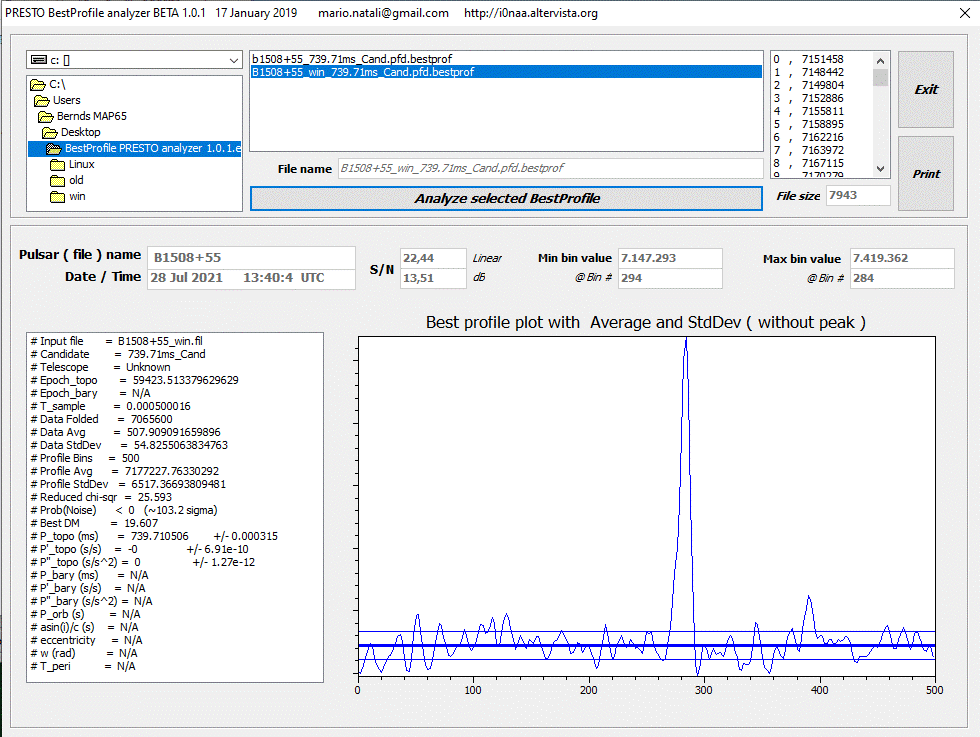

Good detection

With S/N 22,4

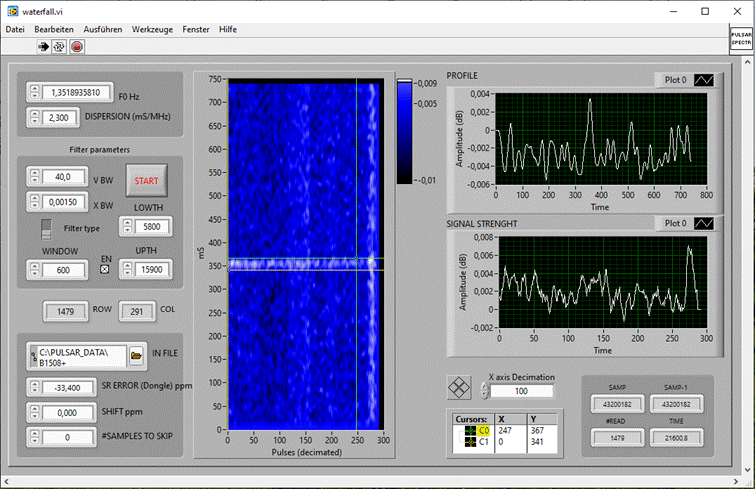

Now with Airspy and 10MHz BW

The 10MHz recording looks much better as with 2MHz

But S/N is only a bit better as with 2MHz BW

1 Try :











back





Last update august 2021
