DL7APV Pulsare detection



B0809+74

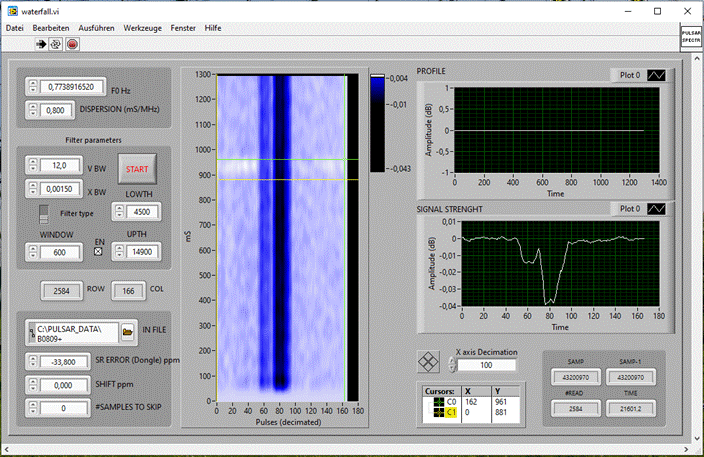

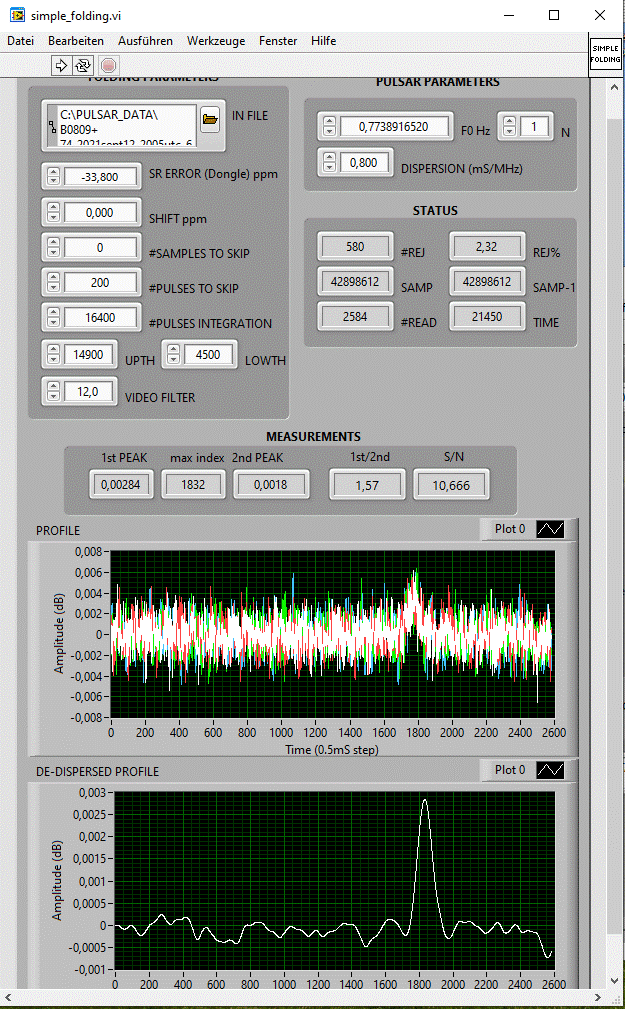

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

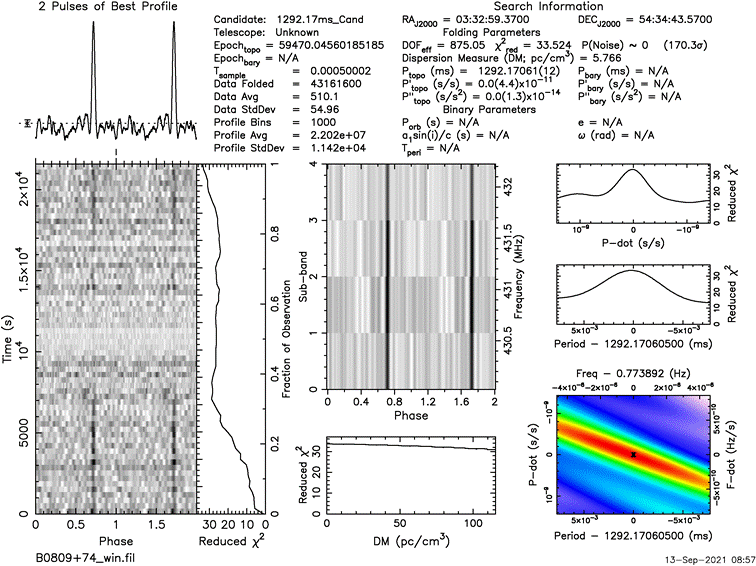

After conversion: B0809+74_win.fil

Recorded File

After conversion: b0809+74.fil



Record date: 2021 sept 12 Start 20:05 UTC 6h

Local antenna direction from Az/EL 0°/38° to 25°/74°



RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000

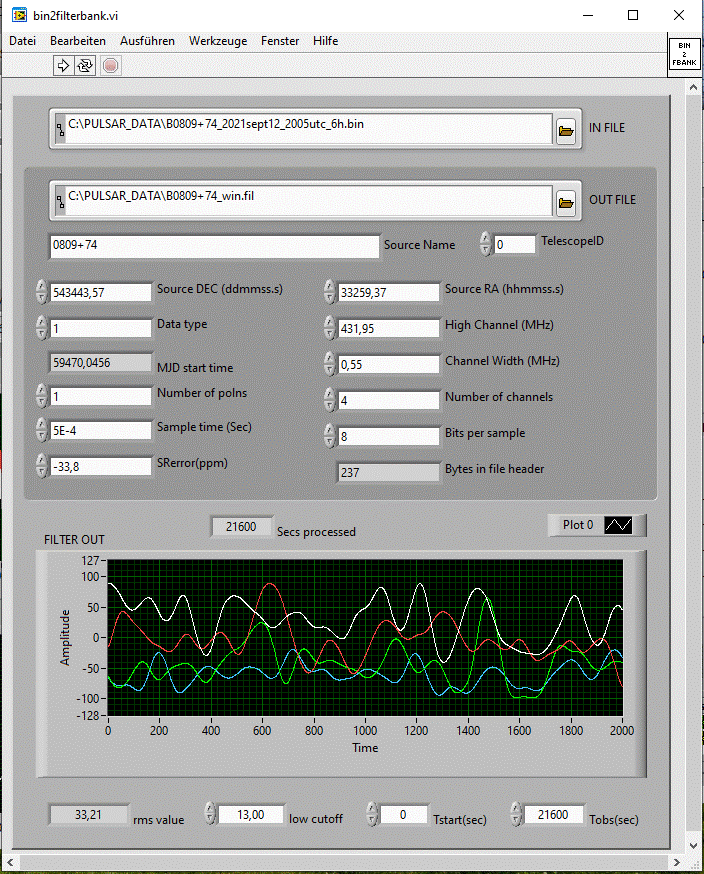

Bin2fil data:







Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



Airspy settings:



rec_gui:

ACQ time (s)

21600

Sample rate

10MSPS (airspy)

SR time series

2KSPS

Num chan

25

Frequency (MHz)

433.5

RF gain (dB)

30

IF Gain (dB)

9

BB gain

0

DIG gain

2





Bin2fil settings:



Conv start

0

Length

21600

Ampli

2

Filt H

12

Filt L

0.08

Filter typ

Bessel

Source name



DEC



RA



Center frequency (MHz)

433.5

SR

10MSPS (airspy)

SR error (ppm)

0

SR time series

2KSPS

Channels

25





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

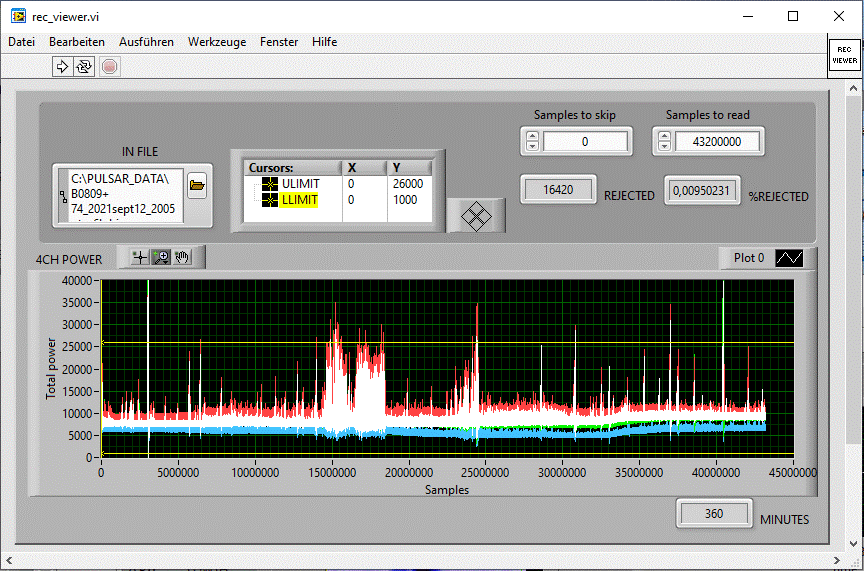

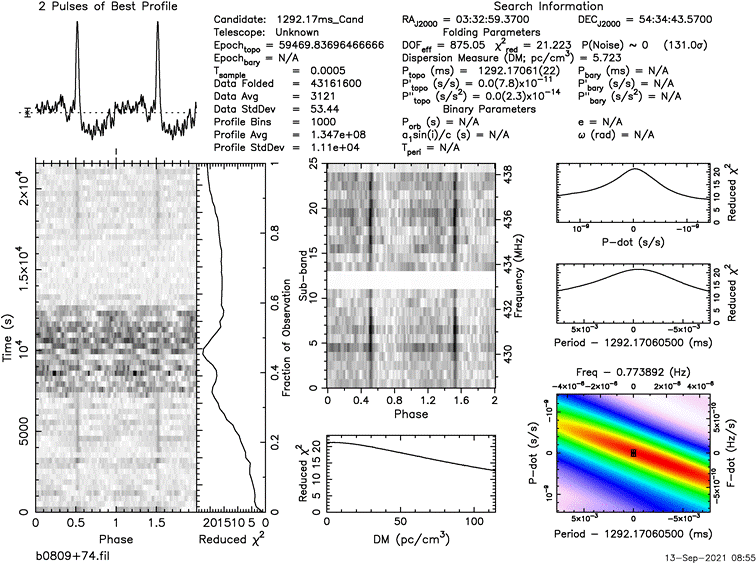

Quiet with qrm in the middle and the typical electrical fence from neighbor



























As in most cases the DM curve is much better as with the 2MHz recording

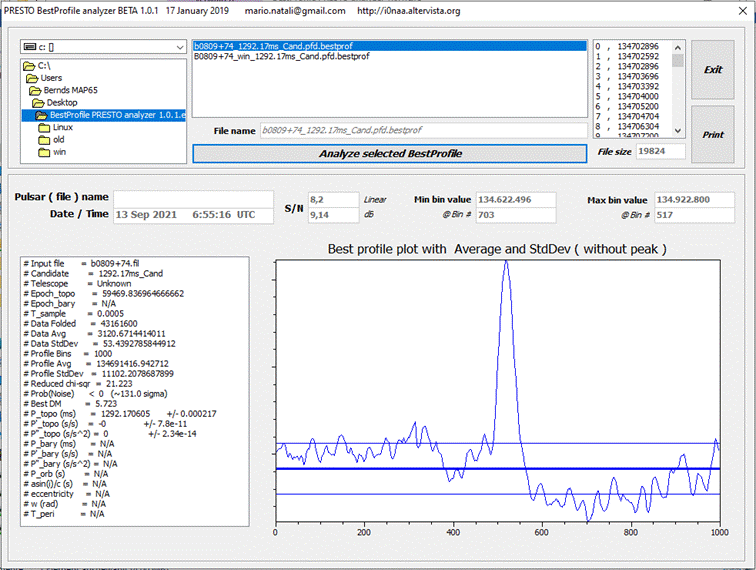

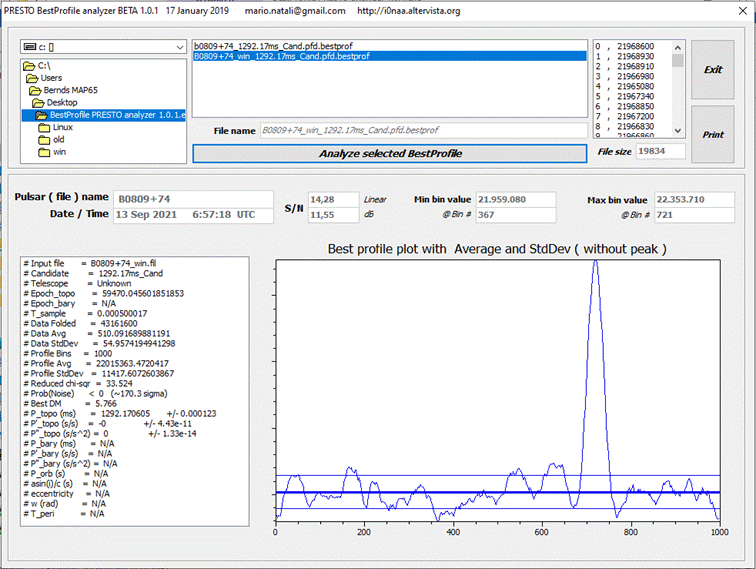

Here the 2Mhz win recording is much better as S/N with 10Mhz, I guess due to qrm



less S/N as the 2MHz recording

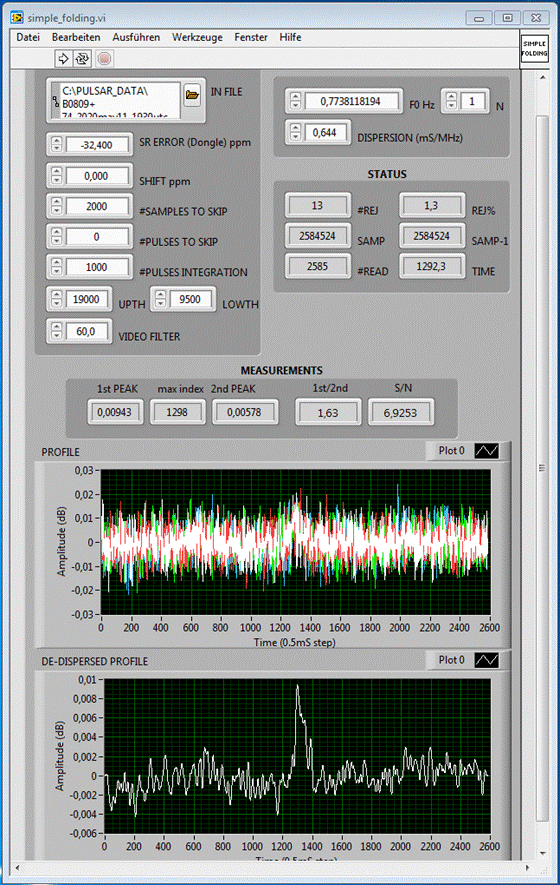

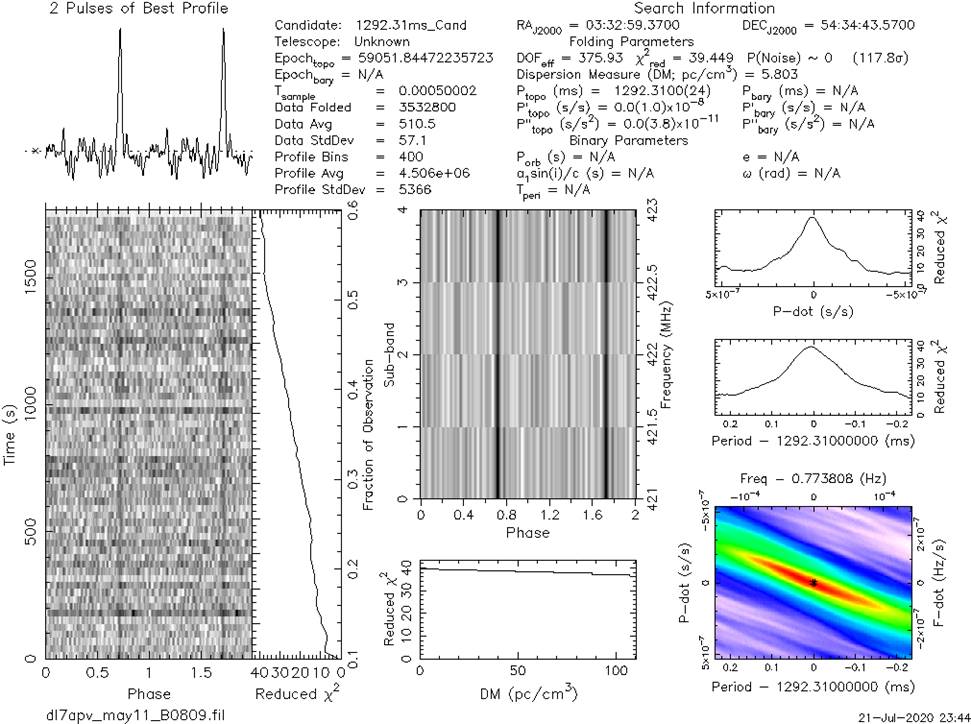

Older recordings with 2MHz

and 1h observation time
