DL7APV Pulsare detection



B0531+21

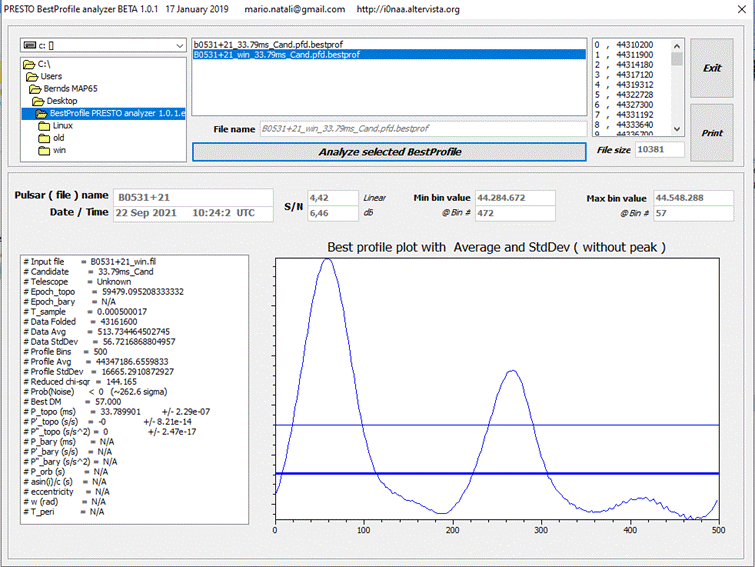

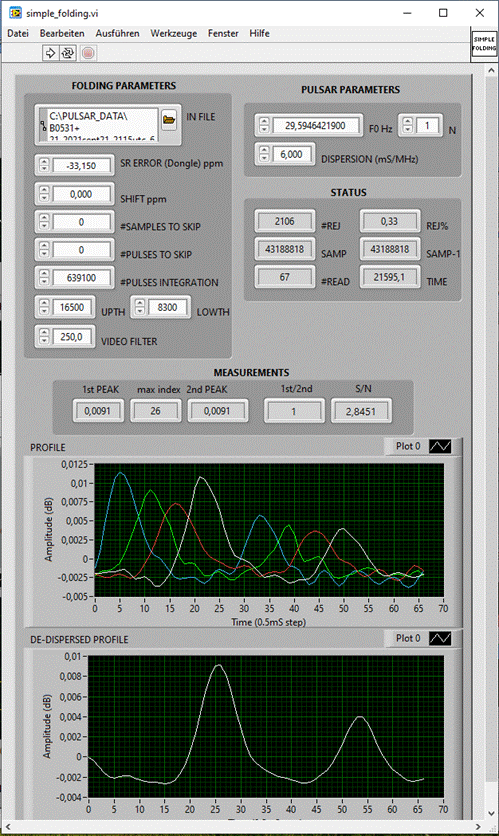

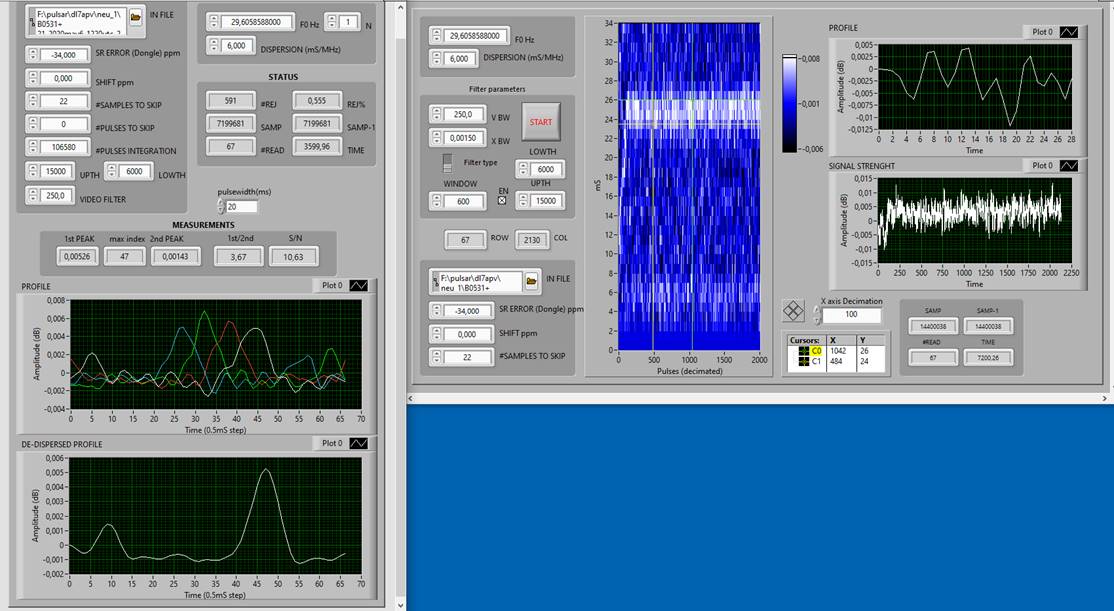

Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

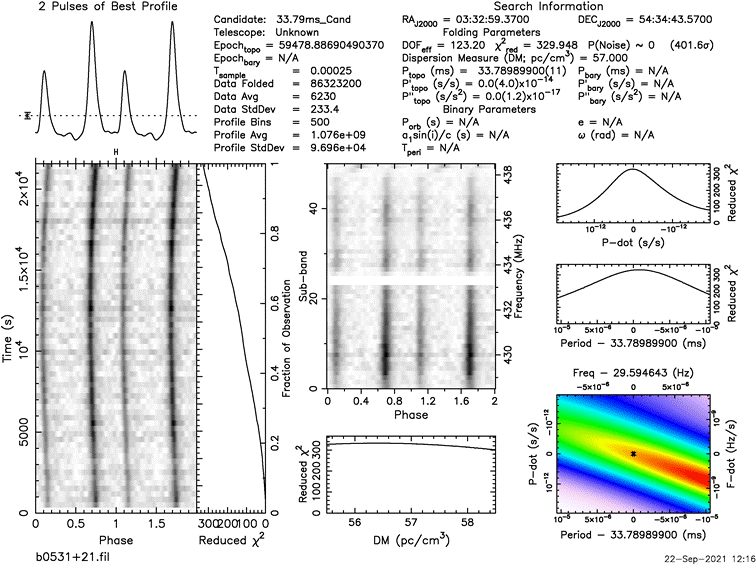

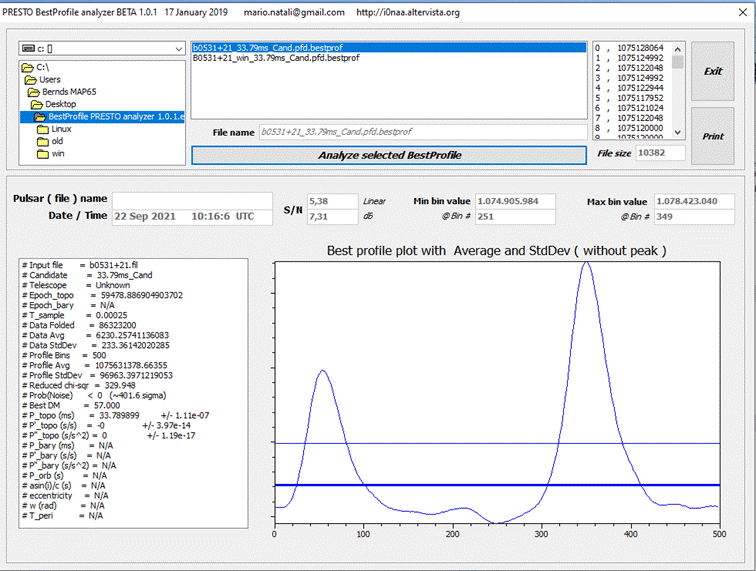

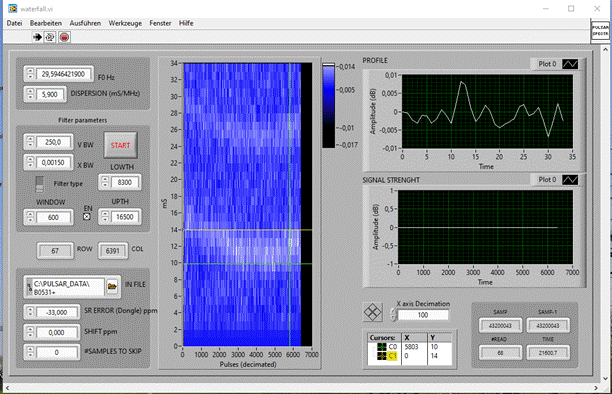

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

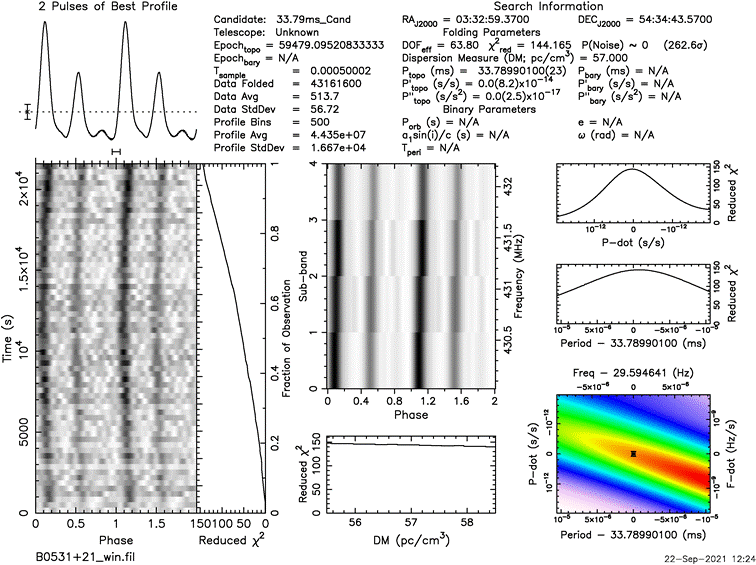

Recorded File:B0531+21_win.fil

After conversion:

Recorded File

After conversion: b0531+21.fil-----too big only on request



Record date: 2021 sept 21 Start 21:15 UTC 6h

Local antenna direction from Az/EL 60/5 to 144/55



RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000

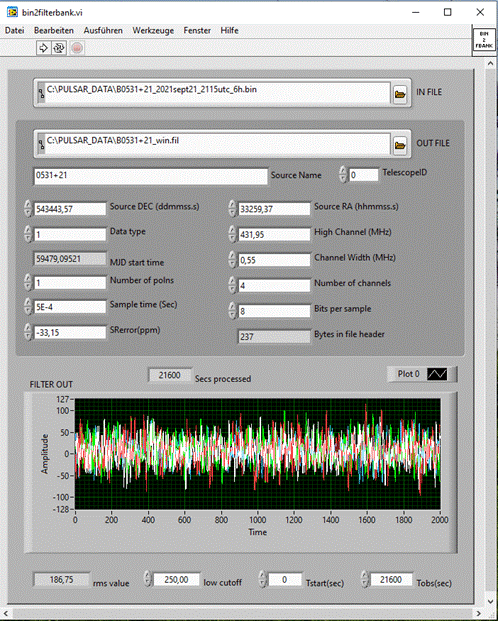

Bin2fil data:







Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



Airspy settings:



rec_gui:

ACQ time (s)

21600

Sample rate

10MSPS (airspy)

SR time series

4KSPS

Num chan

50

Frequency (MHz)

433.5

RF gain (dB)

30

IF Gain (dB)

9

BB gain

0

DIG gain

2





Bin2fil settings:



Conv start

0

Length

21600

Ampli

2

Filt H

200

Filt L

0.001

Filter typ

Bessel

Source name



DEC



RA



Center frequency (MHz)

433.5

SR

10MSPS (airspy)

SR error (ppm)

0

SR time series

4KSPS

Channels

50





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

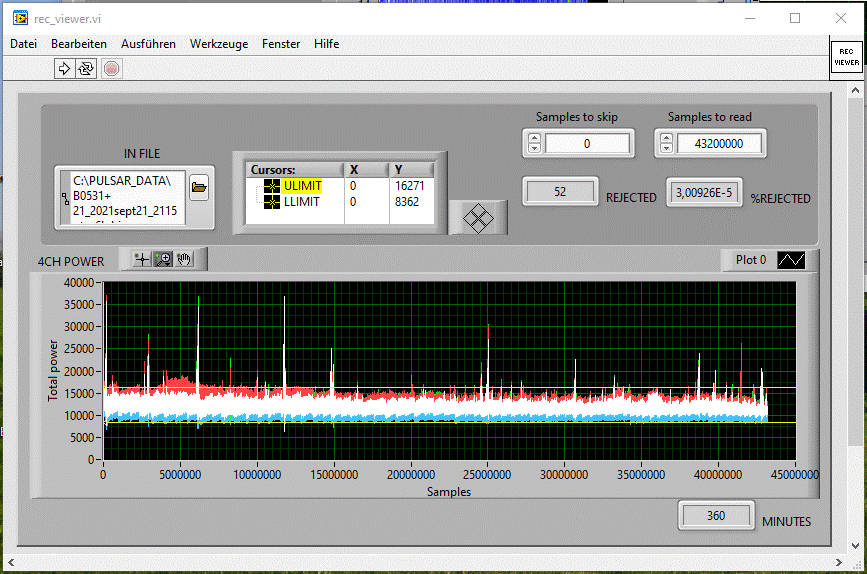

The typical electrical fence from neighbor

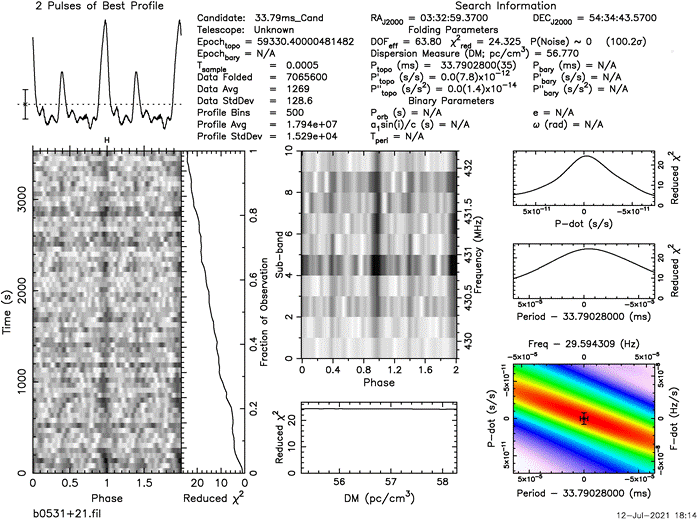

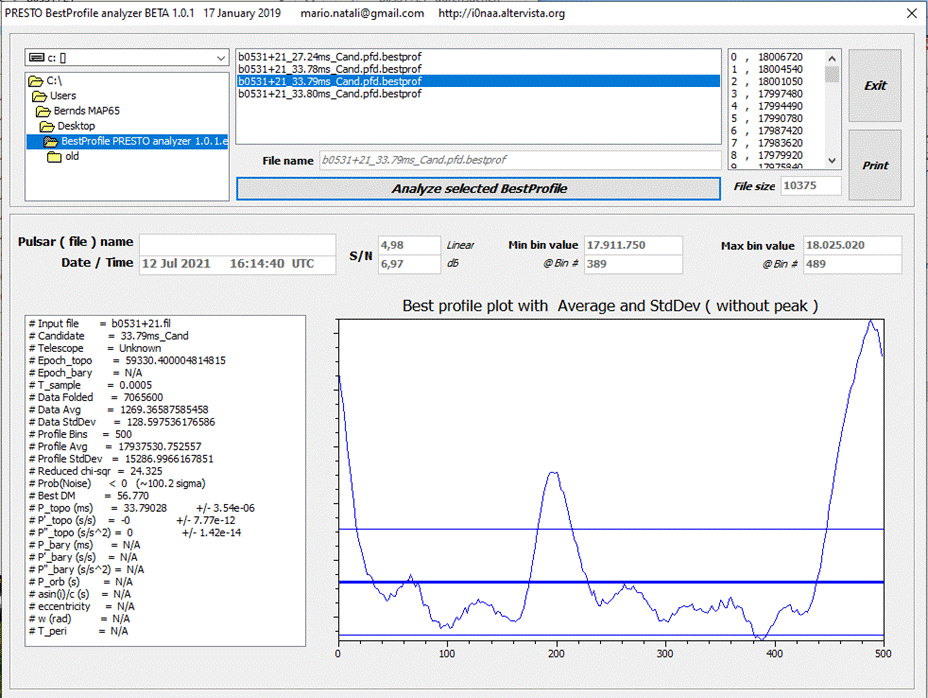

Older recordings with 2MHz

and 2h observation time













back





Last update sept 2021
