DL7APV Pulsare detection



B0031-07



Bandwidth 2,2MHz with RTL-dongle and IW5BHY software Tempo for recording and folding and presto folding after conversion

Bandwidth 10MHz with airspy SDR and Presto Software for recording and folding

Recorded File:

After conversion: B0031-07_win_2.fil

Recorded File

After conversion: b0031-07.fil



Record date: 2021 aug 11 Start 21:15 UTC 6h

Local antenna direction from Az/EL 108/4 to 199/28



RTL settings:

Frequenz : 431.200 MHz, Gain 40dB

-s 2048000



Bin2fil data:



Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1



Airspy settings:



rec_gui:

ACQ time (s)

21600

Sample rate

10MSPS (airspy)

SR time series

2KSPS

Num chan

25

Frequency (MHz)

433.5

RF gain (dB)

30

IF Gain (dB)

6

BB gain

0

DIG gain

2

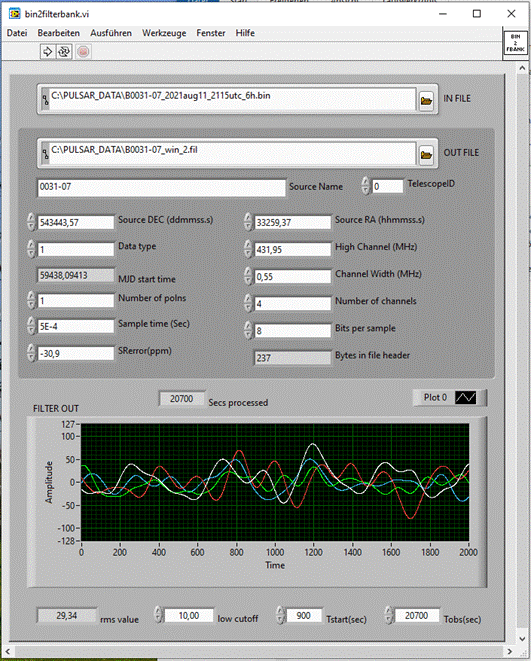

Bin2fil settings:



Conv start

0

Length

21600

Ampli

2

Filt H

10

Filt L

0.06

Filter typ

Bessel

Source name



DEC



RA



Center frequency (MHz)

433.5

SR

10MSPS (airspy)

SR error (ppm)

0

SR time series

2KSPS

Channels

25





Rfifind -o mask -time 1 -timesig 4 -freqsig 37 -chanfrac 1 -intfrac 1

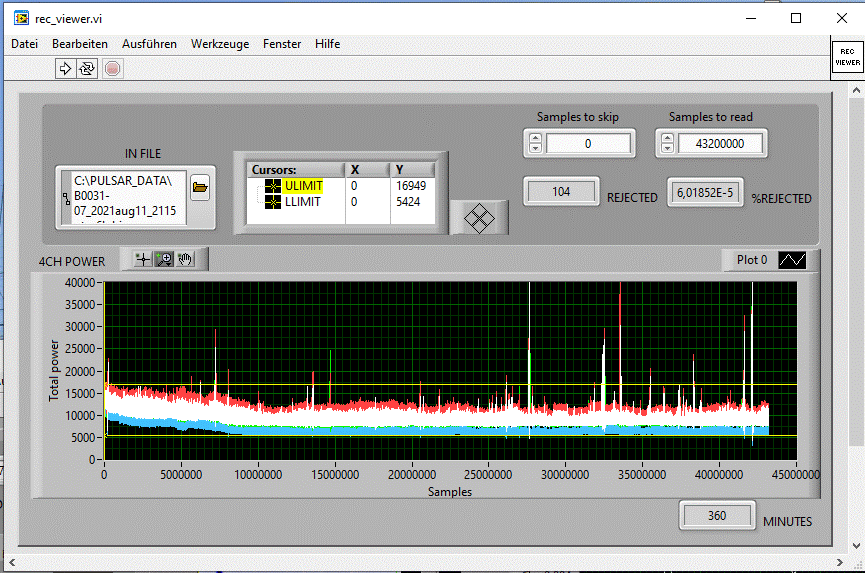

Quiet, with typical electrical fence from neighbor and ground noise at the beginning

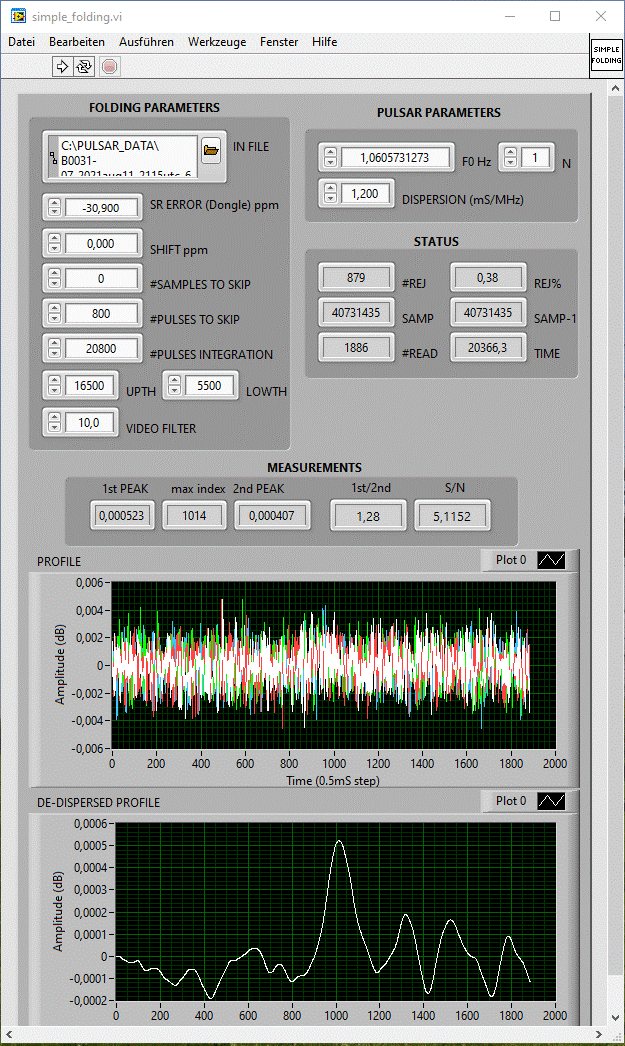

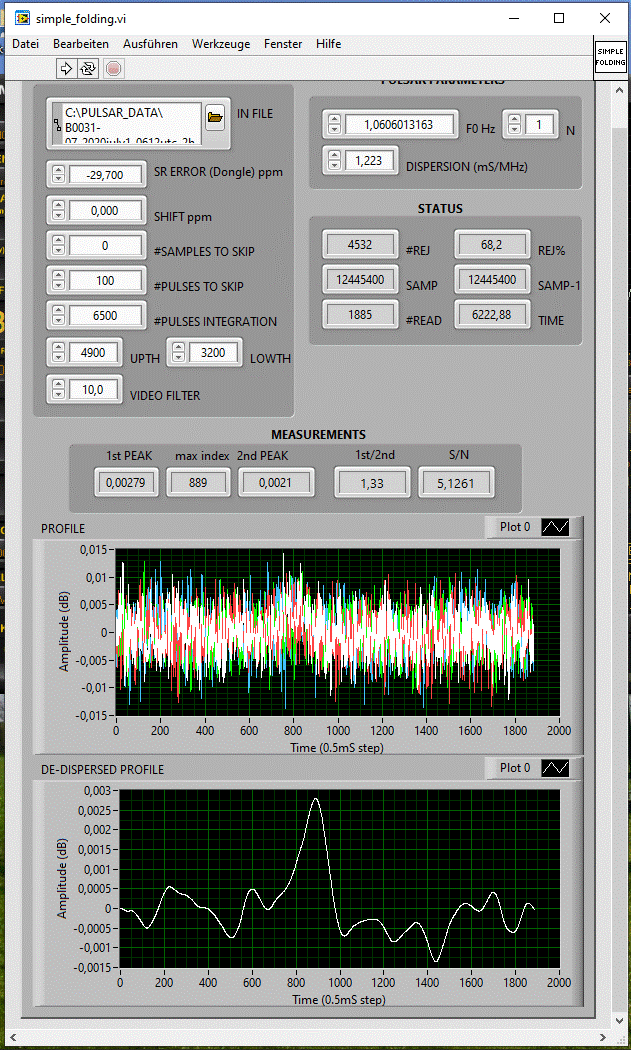

S/N 5,1 gives hope

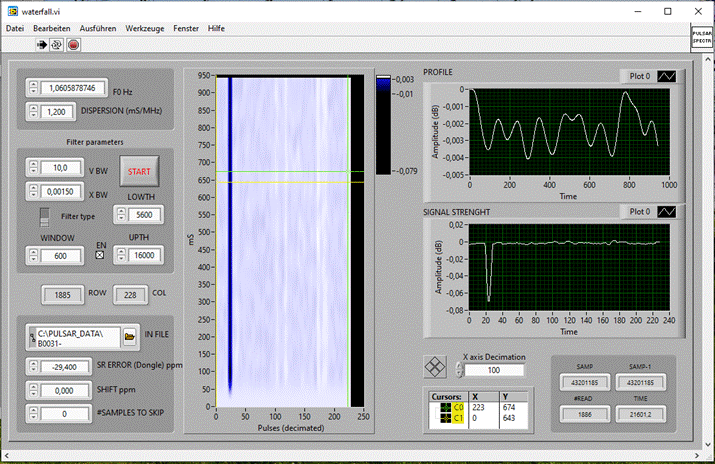

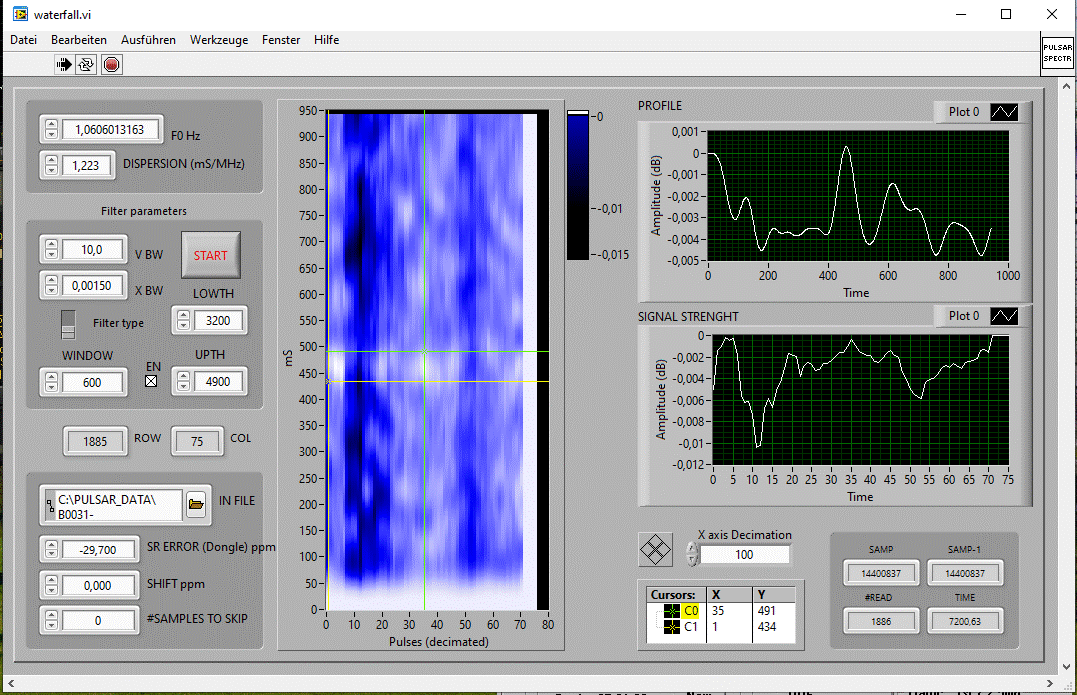

Nil in waterfall

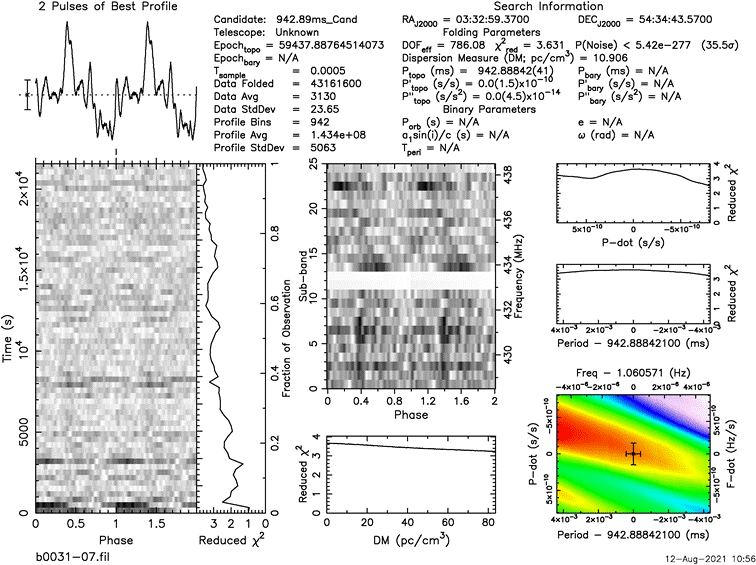

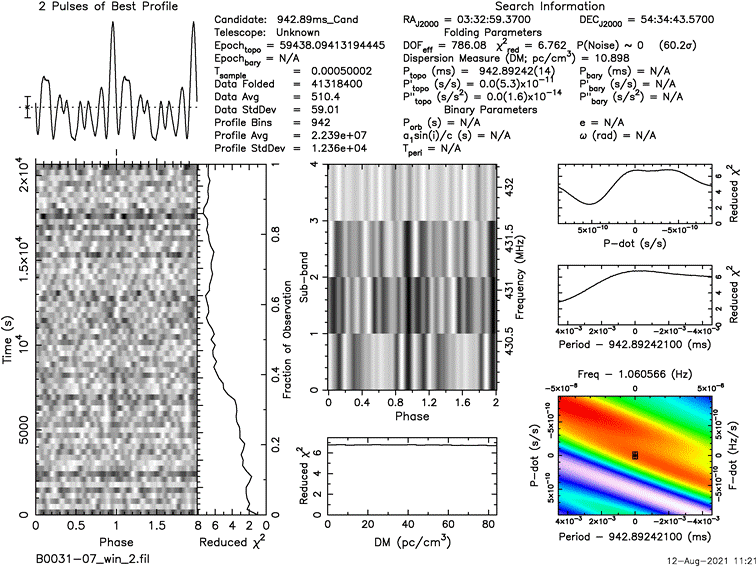

But here it looks very good !

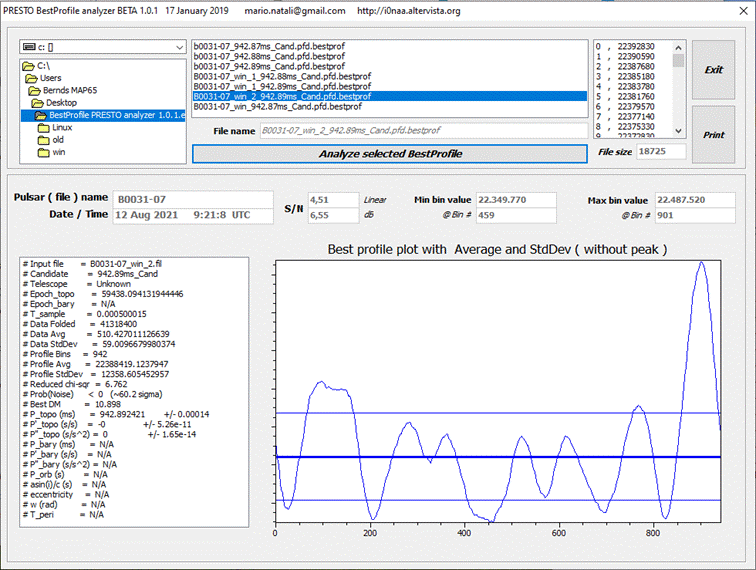

All values look fine, but the 2MHz picture look better

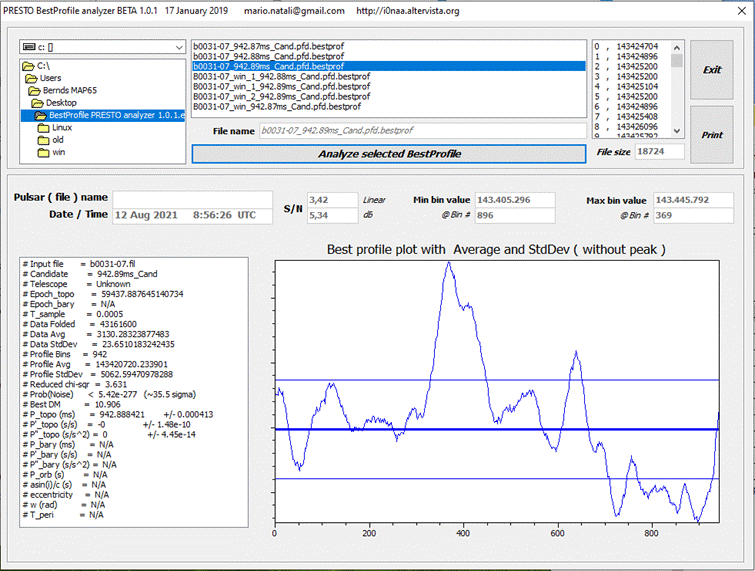

Close to the value of folding before of 5,1



S/N is much worse compared to the 2MHz

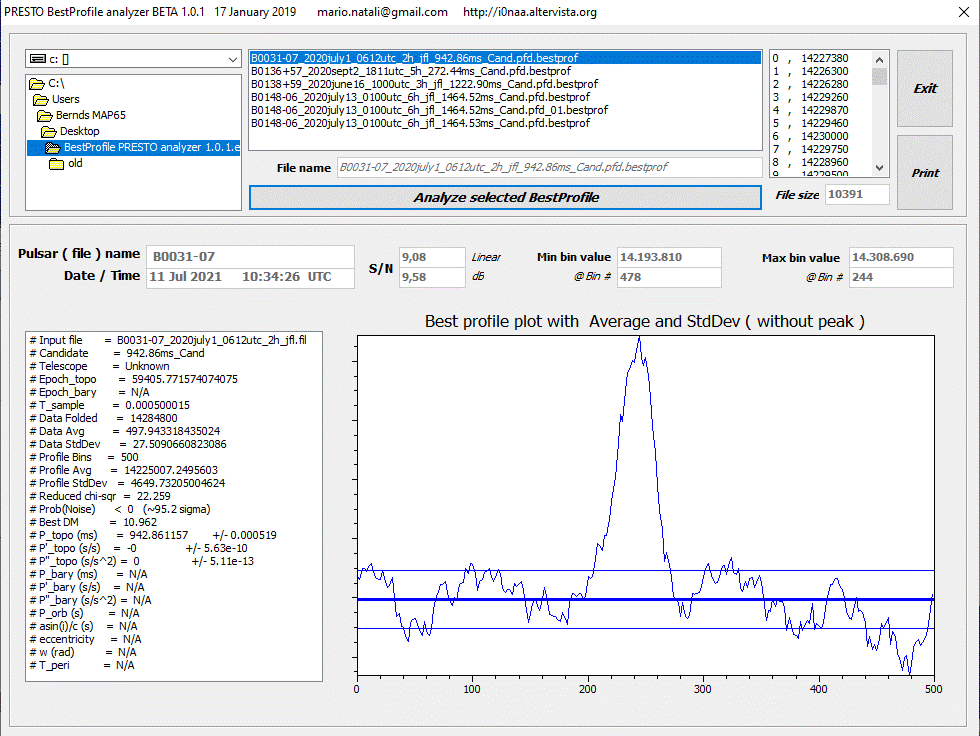

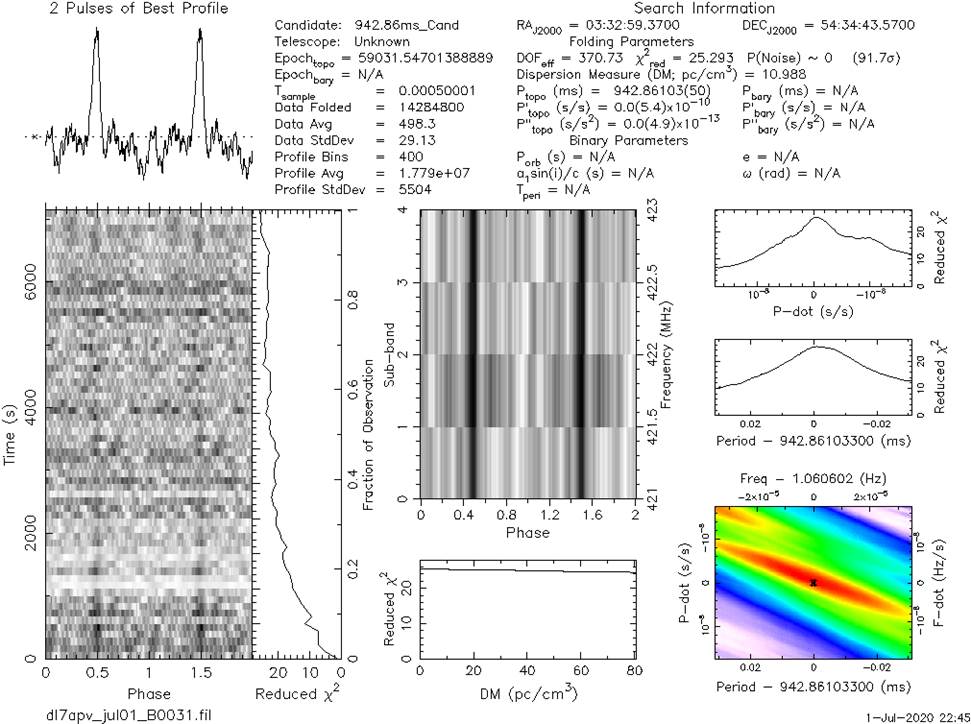

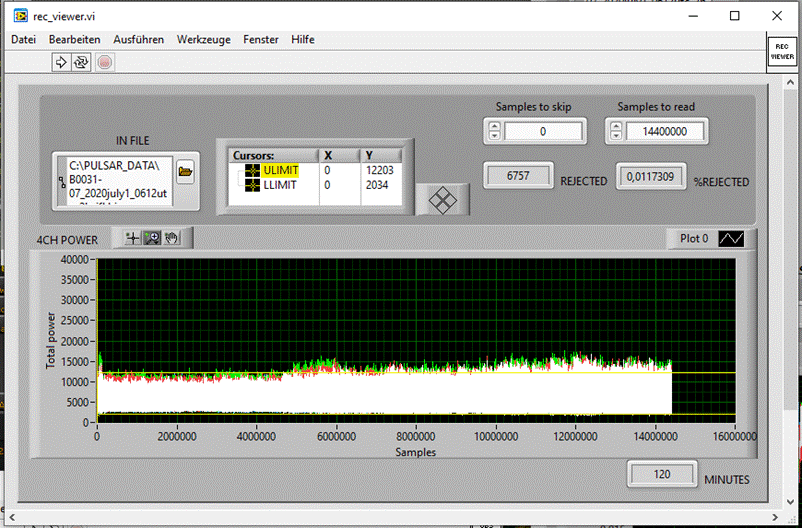

Older recordings with 2MHz

Only 2h but much better S/N















back





Last update august 2021
